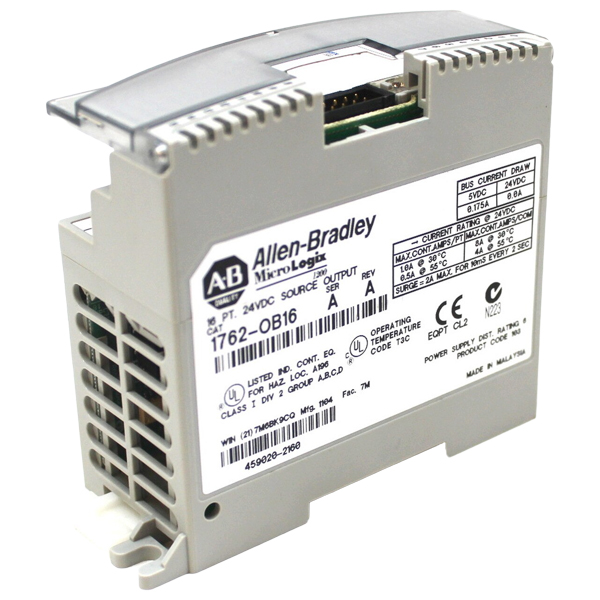

1762-OB16 | Allen Bradley 1762 MicroLogix Digital Output Module

Part Number: 1762-OB16Model: 1762 MicroLogix Digital Output Module Manufacturer: Allen BradleyTechnical SpecificationsModel: 1762-OB16Dimensions, H x W x D: 90 x 40.4 x 87 mm (height including mounting tabs is 110 mm) Temperature, nonoperating: -40·5 ?C (-40·85 ?F)Temperature, operating: 0·5 ?C (32·31 ?F)Humidity, operating: 5·5% non-condensingAltitude, operating: 2000 m (6561 ft)Vibration, operating: 10·00 Hz, 5 g, 0.030 in. max. peak-to-peak, 2 hours per axisShock: Operating: 30 g panel mounted, 3 pulses per axis; Non-Operating: 50 g panel mounted, 3 pulses per axis (40 g DIN Rail mounted)Hazardous Environment Class: Class I, Division 2, Hazardous Location, Groups A, B, C, D; ISA/ANSI 12.12.01; (C-UL under CSA C22.2 No. 213)Radiated and Conducted Emissions: EN50081-2 Class AESD Immunity (IEC1000-4-2): 4 kV contact, 8 kV air, 4 kV indirectRadiated Immunity (IEC1000-4-3): 10 V/m, 80·000 MHz, 80% amplitude modulation, +900 MHz keyed carrierFast Transient Burst (IEC1000-4-4): 2 kV, 5 kHzSurge Immunity (IEC1000-4-5): 2 kV common mode, 1 kV differential mode
