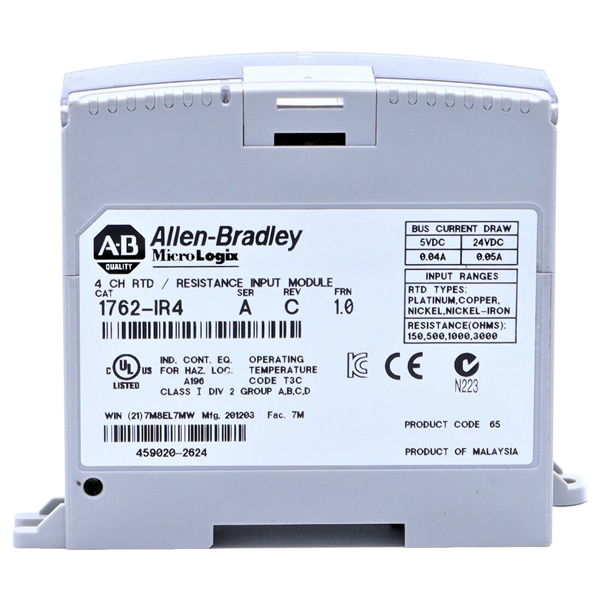

1762-IR4 | Allen Bradley MicroLogix 1200 RTD/Resistance Input Module

Model1762-IR4Dimensions, H x W x D90 x 40 x 87 mm (3.54 x1.58 x 3.43 in.)height including mounting tabs is 110 mm (4.33 in.)Approximate Shipping Weight (with carton)260 g (0.57 lbs.)Storage Temperature-40 85 ?C (-40 185 ?F)Operating Temperature0 55 ?C (+32 131 ?F)Operating Humidity5% to 95% non-condensingOperating Altitude2000 meters (6561 feet)VibrationOperating: 10 to 500 Hz, 5G, 0.030 in. max. peak-to-peakShockOperating: 30 gBus Current Draw (max.)40 mA @ 5V DC50 mA @ 24V DCHeat Dissipation1.5 WattsInput Group to System Isolation30V AC/30V DC rated working voltage?(N.E.C. Class 2 required)(IEC Class 2 reinforced insulation)type test: 500V AC or 707V DC for 1 minuteModule Power LEDOn: indicates power is applied.Vendor I.D. Code1Product Type Code10Product Code65Hazardous Environment ClassClass I, Division 2, Hazardous Location, Groups A, B, C, DISA/ANSI 12.12.01(C-UL under CSA C22.2 No. 213)Radiated and Conducted EmissionsEN50081-2 Class A ESD Immunity (EN61000-4-2)4 kV contact, 8 kV air, 4 kV indirect Radiated Immunity (EN61000-4-3)10 V/m, 80 1000 MHz, 80% amplitude modulation, +900 MHz, keyed carrier Fast Transient Burst (EN61000-4-4)2 kV, 5 kHz Surge Immunity (EN61000-4-5)1 kV galvanic gun Conducted Immunity (EN61000-4-6)10V, 0.15 80 MHz?Rated working voltage is the maximum continuous voltage that can be applied at the terminals with respect to earth ground.Conducted Immunity frequency range may be 150 kHz to 30 MHz if the Radiated Immunity frequency range is 30 MHz to 1000 MHz.
