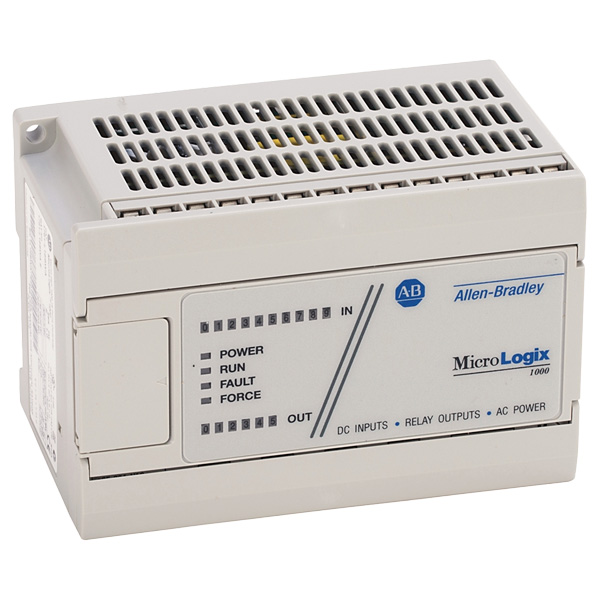

1761-L16BBB | Allen Bradley MicroLogix 1000 Controllers

Model1761-L16BBBMemory Size and Type1 K EEPROM (approximately 737 instruction words: 437 data words)Power Supply and Voltage20.4-26.4V dcPower Supply Usage120V acNot Applicable240V ac24V dc5W Power Supply Max Inrush Current30A for 4 ms24V dc Sensor Power (V dc at mA)Not ApplicableMax Capacitive Load (User 24V dc)Not ApplicablePower Cycles50,000 minimumVibrationOperating: 5 Hz to 2k Hz, 0.381 mm (0.015 in.) peak to peak/2.5g panel mounted,? 1hr per axisNon-operating: 5 Hz to 2k Hz, 0.762 mm (0.030 in.) peak to peak/5g, 1hr per axisShock?Operating: 10g peak acceleration (7.5g DIN rail mounted)? (11?1 ms duration) 3 times each direction, each axisNon-operating: 20g peak acceleration (11?1 ms duration), 3 times each direction, each axisThermal Screw Torque0.9 N-m maximum (8.0 in.-lbs)Electrostatic DischargeEN 61000-2 at 8K VRadiated SusceptibilityEN 61000-3 at 10 V/m, 27 MHz - 1000 MHz; 3V/m, 87 MHz - 108 MHz, 174 MHz - 230 MHz, and 470 MHz - 790 MHzFast TransientEN 61000-4 at 2K V Power Supply, I/O; 1K V CommsIsolation1500V acDIN rail mounted controller is 1g.Refer vertical mounting specifications.Relays are derated an additional 2.5g on 32 pt. controllers.
