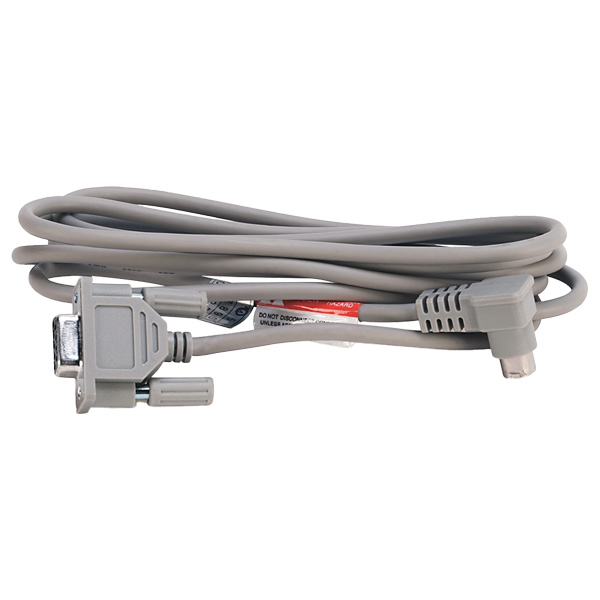

CableLengthConnectsExternal Power Supply RequiredSelection Switch Settingfromto AIC+Interface Converter1761-CBL-PM02¹45 cm (17.7 in.), 2 m (6.5 ft)SLC 5/03, SLC 5/04, or SLC 5/05 processors, channel 0RS-232 (8-pin mini-DIN) communication portYesExternalMicroLogix 1000, 1200, and 1500 processorsRS-232 (DB-9, DTE) Communication PortYes²ExternalPanelView through NULL modem adapterRS-232 (8-pin mini-DIN) communication portYesExternalPC com portRS-232 (8-pin mini-DIN) communication portYesExternalSeries B cables are required for hardware handshaking.An external power supply is required unless the AIC+ interface converter is powered by a MicroLogix controller connected to the RS-232 (8-pin mini-DIN) communication port with a 1761-CBL-AM00 or 1761-CBL-HM02 or equivalent cable.
