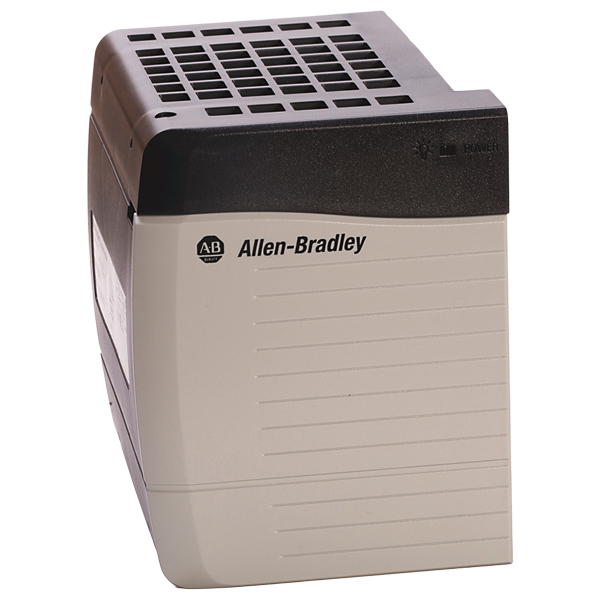

1756-PB75 | Allen Bradley ControlLogix Standard Power Supply

Specifications:Model1756-PB75Input voltage range18 32V DC(1)Input voltage, nom24V DCInput power, max95 WOutput power, max75 W @ 0 60°C (32 140°F)(2)Power consumption25 W @ 0 60°C (32 140°F)Power dissipation68.2 BTU/hrHold-up time(3)35 ms @ 18V DC40 ms @ 24V DC40 ms @ 32V DCInrush current, max30 ACurrent capacity at 1.2V DC1.5 ACurrent capacity at 3.3V DC4 ACurrent capacity at 5.1V DC10 ACurrent capacity at 24V DC2.8 AOvercurrent protection, maxUser-supplied 15 A(4)FusingNon-replaceable fuse is soldered in place(5)Transformer load, max100VAIsolation voltage250V (continuous), reinforced insulation type, power input-to-backplaneType tested @ 3500V DC for 60 sWeight, approx0.95 kg (2.10 lb)Dimensions14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.)Module locationLeft side of 1756 chassisChassis compatibilitySeries A, Series BWire size2.5 mm2 (14 AWG) solid or stranded copper wire rated at90?C (194?F), or greater, 1.2 mm (3/64 in.) insulation maxWire category1-on power ports(6)Conductor screw torque0.8 N m (7 lb in)North American temperature codeT4IEC temperature codeT4Enclosure type ratingNone (open-style)UL certification for 24V DC nominal. Rockwell Automation specified 18 32V DC.The combination of all output power (5.1V backplane, 24V backplane, 3.3V backplane, and 1.2V backplane) cannot exceed 75 W.The hold-up time is the time between input voltage removal and DC power failure.Use time-delay type overcurrent protection in all ungrounded conductors.This fuse is intended to guard against fire hazard due to short circuit conditions.Use this conductor category information for planning conductor routing as described in the system level installation manual.
