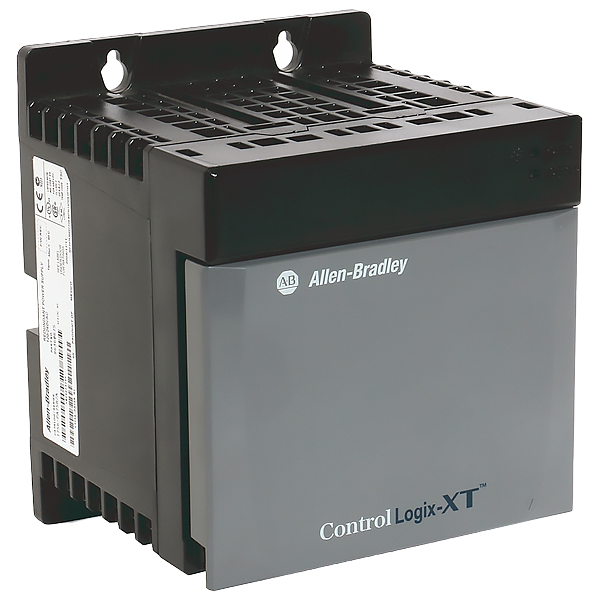

1756-PA75R | Allen Bradley ControlLogix AC Redundant Power Supply

Specifications:Model1756-PA75RInput voltage range85 265V AC¹Input voltage120V/240V AC, 50/60 HzInput frequency range47 63 HzInput power, max120VA 115 WOutput power, max75 W @ 0 60 ?C (32 140 ?F)Inrush current, max20 ACurrent capacity @ 1.2V1.5 ACurrent capacity @ 3.3V4 ACurrent capacity @ 5.1V13 ACurrent capacity @ 24V2.8 AAnnunciator power240V AC 50/60 Hz, 240V DC, 50 mA, resistive onlyIsolation voltage250V (continuous), Reinforced Insulation Type, Power Input to Backplane, Power Input to Annunciator, Annunciator to BackplaneType tested at 3250V DC for 60 sDimensions (HxWxD), approx17.5 x 14.5 x 13.7 cm (6.9 x 5.7 x 5.4 in.)Weight, approx1.45 kg (3.2 lb)Wire sizePower:2.5 mm² (14 AWG) solid or stranded copper wire rated at 90 ?C (194 ?F), or greater, 1.2 mm (3/64 in.) insulation maxAnnunciator:0.25 2.5 mm² (22 14 AWG) solid or stranded copper wire rated at 90 ?C (194 ?F), or greater, 1.2 mm (3/64 in.) insulation maxWire category²3 - on annunciator ports1 - on power ports3 - on 1756-CPR2 connectionsPilot duty ratingAnnunciator - not ratedConductor screw torque0.79 N m (7 lb in)North American temperature codeT3CATEX temperature codeN/AIEC temperature codeN/AEnclosure type ratingNone (open-style)UL certification for 120/240V AC, 50/60 Hz nominal. Rockwell Automation specified 85 265V AC, 47 63 Hz.Use this conductor category information to plan conductor routing. See the Industrial Automation Wiring and Grounding Guidelines.
