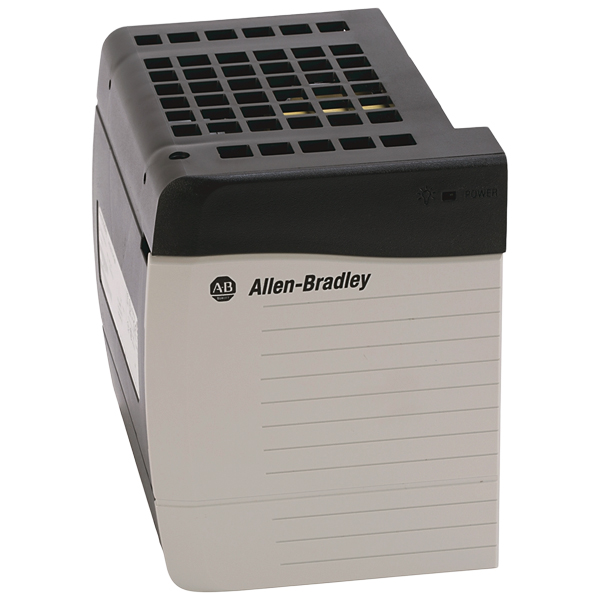

1756-PA75 | Allen Bradley ControlLogix Standard Power Supply

Technical SpecificationsInput voltage range¹: 85...265V ACInput voltage, nom: 120V/240V ACInput frequency range: 47...63 HzInput power, max: 100VA/100 WOutput power, max: 75 W @ 0...60°C (32...140°)²Power consumption: 25 W @ 0...60°C (32...140°)Power dissipation: 85.3 BTU/hrHold-up time³:5 cycles @ 85V AC, 50/60 Hz6 cycles @ 120V AC, 50/60 Hz6 cycles @ 200V AC, 50/60 Hz6 cycles @ 240V AC, 50/60 HzInrush current, max: 20 ACurrent capacity at 1.2V DC: 1.5 ACurrent capacity at 3.3V DC: 4 ACurrent capacity at 5.1V DC: 13 ACurrent capacity at 24V DC: 2.8 AOvercurrent protection, max: User-supplied 15 A4Fusing: Non-replaceable fuse is soldered in place5Transformer load, max: 100VAIsolation voltage:250V (continuous), reinforced insulation typeType tested @ 3500V DC for 60 s, power input-to-backplane approxModule location: Left side of 1756 chassisChassis compatibility: Series BWire size: 2.5 mm² (14 AWG) solid or stranded copper wire rated at 90?C (194?F), or greater, 1.2 mm (3/64 in.) insulation maxWire category: 1-on power ports6Conductor screw torque: 0.8 N m (7 lb in)North American temperature code: T4Enclosure type rating: None (open-style)NOTE:UL certification for 120/240V AC, 50/60 Hz nominal. Rockwell Automation specified 85 265V AC, 47 63 Hz.The combination of all output power (5.1V backplane, 24V backplane, 3.3V backplane, and 1.2V backplane) cannot exceed 75 W.The hold-up time is the time between input voltage removal and DC power failure.Use time-delay type overcurrent protection in all ungrounded conductors.This fuse is intended to guard against fire hazard due to short circuit conditions.Use this conductor category information for planning conductor routing as described in the system level installation manual.
