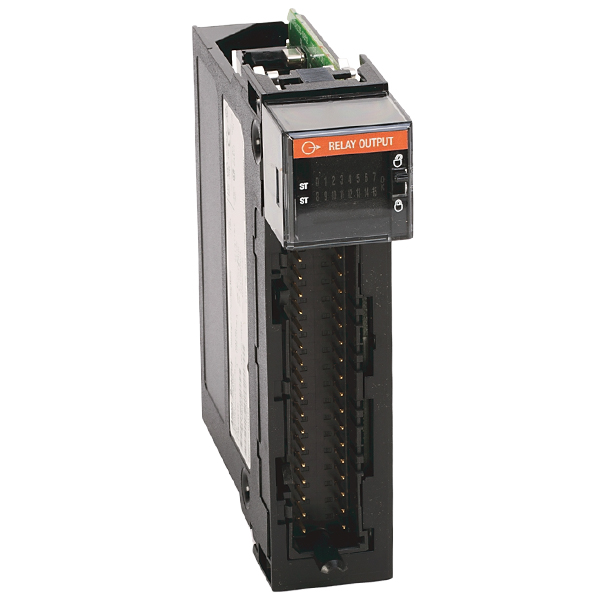

1756-OW16I/A | Allen Bradley Contact Output Module

Technical SpecificationsOutputs: 16 N.O. individually isolatedPilot duty: C300/R150Operating voltage range:5...125V DC10...240V ACOutput voltage range (load dependent):1 A @ 5 30V DC0.5 A @ 48V DC0.22 A @ 125V DC1.5A @ 120V AC 50/60 Hz0.75A @ 240V AC 50/60 HzOutput delay time:Off to On: 10 ms maxOn to Off: 10 ms maxCurrent draw @ 5.1V: 150 mACurrent draw @ 24V: 150 mATotal backplane power: 4.4 WPower dissipation, max: 4.5 W @ 60°C (140°F)Thermal dissipation: 15.35 BTU/hrOff-state leakage current per point, max: 1.5 mA per pointOn-state voltage drop, max: 400 mV DC @ 1 AMinimum load current: 10 mA per pointCurrent per module, max: 8 A @ 60°C (140°F)Initial contact resistance, max: 100 m @ 6V 1 ASwitching frequency, max: 1 operation/3 s (0.3 Hz at rated load)Bounce time, mean: 1.2 msExpected contact life:300 K cycles resistive100 K cycles inductiveScheduled outputs: Synchronization within 16.7 s max, reference to the Coordinated System TimeStates in Fault mode per point: Hold last state, On or Off (Off is default)States in Program mode per point: Hold last state, On or Off (Off is default)Isolation voltage: 250V (continuous), basic insulation type, outputs-to-backplane, and output-to-outputRoutine tested @ 1350V AC for 2 sModule keying: Electronic, software configurableFusing: Not protected. A fused IFM can be used to protect outputs.RTB keying: User-defined mechanicalSlot width: 1Wire category: 1¹North American temperature code: T4Enclosure type: None (open-style)Use this conductor category information for planning conductor routing as described in the system-level installation manual. See the Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1
