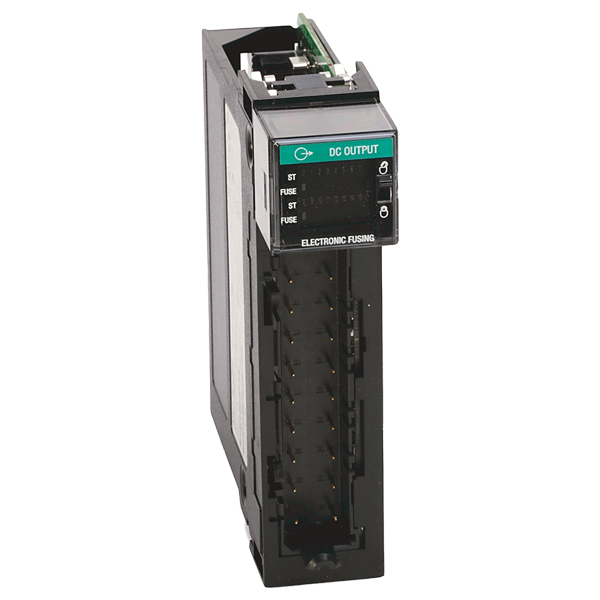

1756-OV32E | Allen Bradley Digital DC Output Module

Technical Specifications Outputs 32 electronically fused (16 points/group) Voltage category 12/24V DC sink Operating voltage range 10…30V DC Output delay time (24V to 0V DC transition)Off to OnOn to Off 75 µs nom/300 µs max230 µs nom/1 ms max Current draw @ 5.1V 10…30V DC Current draw @ 24V 390 mA Current draw @ 24V 2 mA Total backplane power 2.04 W Power dissipation, max 5.88 W @ 60 °C (140 °F) Thermal dissipation 20.1 BTU/hr Off-state leakage current per point, max 1 mA per point On-state voltage drop, max 350 mV DC @ 0.5 A Current per point, max 0.5 A @ 50 °C (122 °F) linear derating0.35 A @ 60 °C (140 °F) Current per module, max 16 A @ 50 °C (122 °F) linear derating10 A @ 60 °C (140 °F) Current per group, max 8 A @ 50 °C (122 °F) linear derating5 A @ 60 °C (140 °F) Load current, min 2 mA per point
