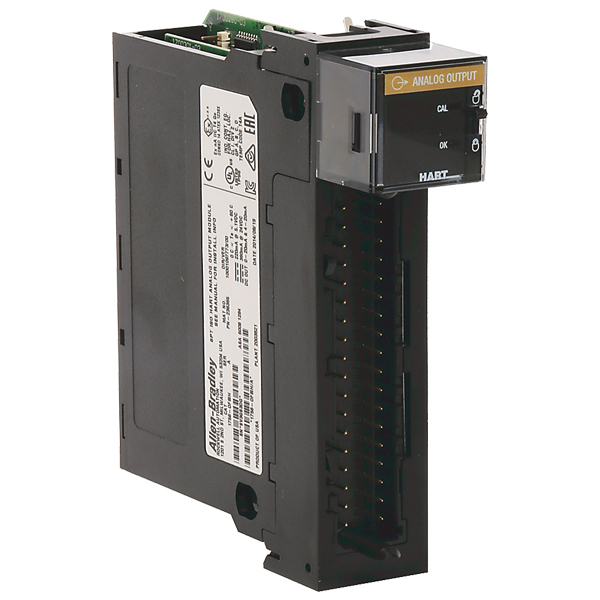

1756-OF8IH | Allen Bradley ControlLogix HART Analog Output Module

Technical Specifications Attribute 1756-OF8IH Outputs 8 current Output range 0…20 mA4…20 mA Resolution 15 bits across 24 mA, 732 nA per bit Voltage and current ratings Backplane: 220 mA @ 5.1V DC, 360 mA @ 24V DCOutput voltage range: 5…30V DCOutput current range: 0…20 mA, 4…20 mA Current draw @ 24V 400 mA (estimated) Power dissipation, max 6.5 W nominal(< 6.4 W with 50 ? load on all channels)(<6.5 W with 250 ? load on all channels)(<6.7 W with 750 ? load on all channels) Open circuit detection Current output only (output must be set >= 0.1 mA) Overvoltage protection, max ±24V DC Output short circuit protection Current electronically limited to <= 21 mA with no damage
