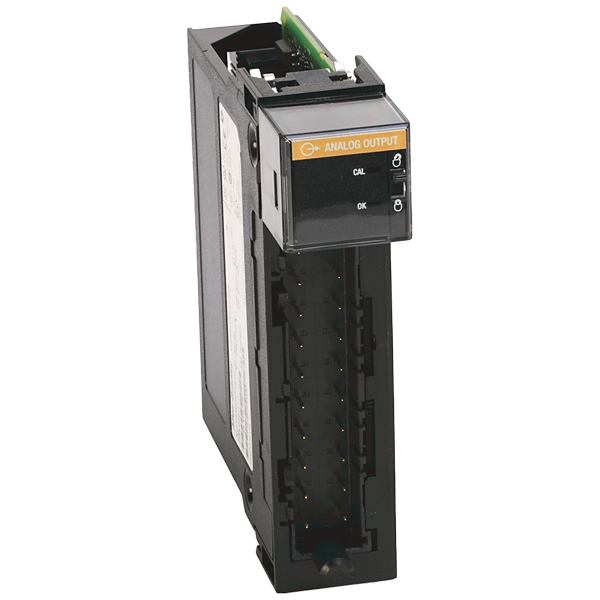

1756-OF6CI | Allen Bradley Isolated Analog Output Module
Артикул: QT-56330
от 514 887 ₸
В наличии: 1
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|---|---|---|---|
| склад-3 | 1 087,20 USD | 514 887 ₸ | 1 | 30–45 дней |
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Estimated Lead Time | Ships in 1 - 7 working days |
| Factory Warranty | 12 Months |
| ID каталога | 63227 |
| Model | Isolated Analog Output ModuleBrand: Allen Bradley |
| Part Number | 1756-OF6CI |
| Shipping Weight | 2 Kg |
| Артикул | 1756-OF6CI |
Описание
Technical Specifications Outputs 6 individually isolated Output range 0…21 mA Resolution 13 bits across 21 mA (2.7 µA) Current draw @ 5.1V 250 mA for 0…550 ? loads terminated on OUTs and RTNs250 mA for 551…1000 ? loads terminated on OUTs and ALTs Current draw @ 24V 225 mA for 0…550 ? loads terminated on OUTs and RTNs300 mA for 551…1000 ? loads terminated on OUTs and ALTs Total backplane power 6.7 W for 0…550 ? range8.5 W for 551…1000 ? range Power dissipation, max 5.5 W (0…550 ? loads)6.1 W (551…1000 ? loads) Thermal dissipation 18.76 BTU/hr (0…550 ? loads)20.80 BTU/hr (551…1000 ? loads) Open circuit detection None Overvoltage protection 24V DC Short circuit protection Electronically current limited to 21 mA or less
