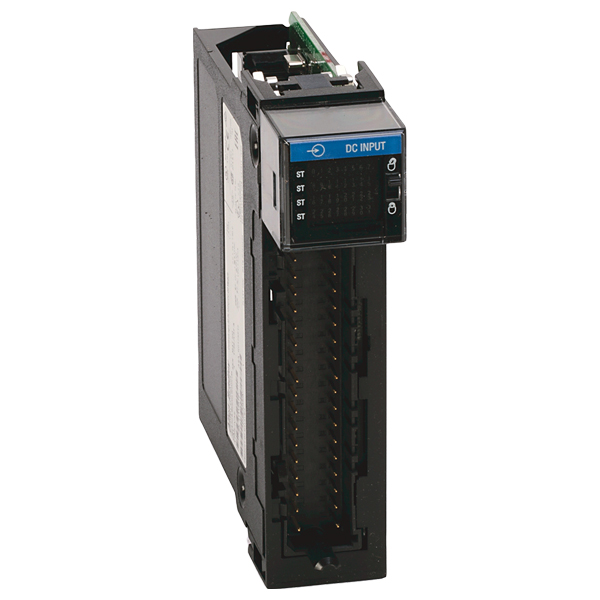

1756-IV32 | Allen Bradley Digital DC Input Module

Technical Specifications Inrush current, max 250 mA (decaying to <37% in 22 ms, without activation) Input impedance, max 8.6 k? @ 30V DC Cyclic update time 200 µs…750 ms Change of state Software configurable Time stamp of inputs ±200 µs Isolation voltage 250V (continuous), basic insulation type, inputs-to-backplane, and input group-to-groupNo isolation between individual group inputs Module keying Electronic, software configurable Removable terminal block 1756-TBCH1756-TBS6H RTB keying Single teach-in button(3) Special applications User-defined mechanical Slot width 1 Wire category 1 - on signal ports(1) Enclosure type None (open-style) North American temperature code T4A IEC temperature code T4 Reverse polarity protection Yes Use this conductor category information for planning conductor routing as described in the system-level installation manual.
