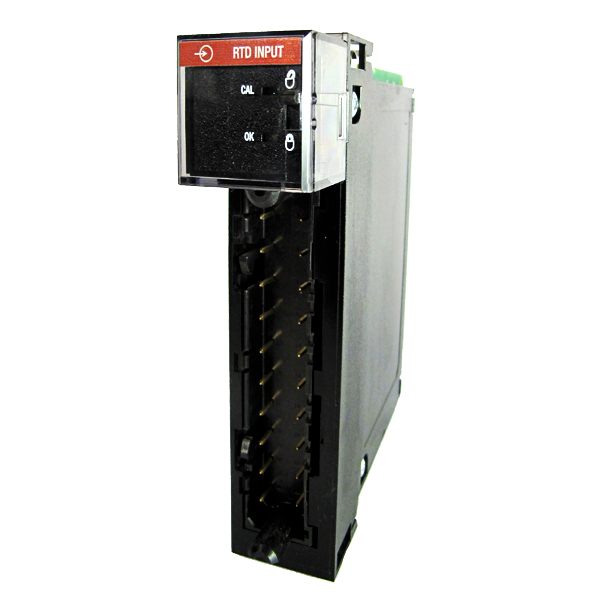

1756-IR6I | Allen Bradley ControlLogix 6-channel Temperature-measuring Isolated Analog I/O Modules

Technical SpecificationsInputs: 6 individually isolated RTDInput range: 1·87 O2·000 O4·000 O8·000 OResolution:16 bits1·87 O: 7.7 mO/bit2·000 O:15 mO/bit4·000 O:30 mO/bit8·020 O:60 mO/bitCurrent draw @ 5.1V: 250 mACurrent draw @ 24V: 125 mATotal backplane power: 4.25 WPower dissipation, max: 4.3 WThermal dissipation: 14.66 BTU/hrChannel bandwidth: 15 Hz?Settling time: <80 ms to 5% of full scale?Calibrated accuracy @ 25 ?C: Better than 0.1% of rangeCalibration interval: 6 monthsOffset drift: 10 MO/?C Gain drift with temperature, nom: 50 ppm/?CGain drift with temperature, max: 90 ppm/?CModule error: 0.54% of rangeModule scan time:25 ms min floating point (ohms)50 ms min floating point (temperature)10 ms min integer (ohms)?Data format: Integer mode (left justified, 2s complement) IEEE 32-bit floating pointModule conversion method: Sigma-DeltaIsolation voltage: 50V (continuous), basic insulation type, input channels-to-backplane, and input channel-to-channelRoutine tested at 1350V AC for 2 sModule keying: Electronic, software configurableRTB keying: User-defined mechanicalSlot width: 1Wire category: 2?North American temperature code: T4AIEC temperature code: T4Enclosure type: None (open-style)NOTE:Notch filter dependent.Use this conductor category information for planning conductor routing as described in the system-level installation manual.
