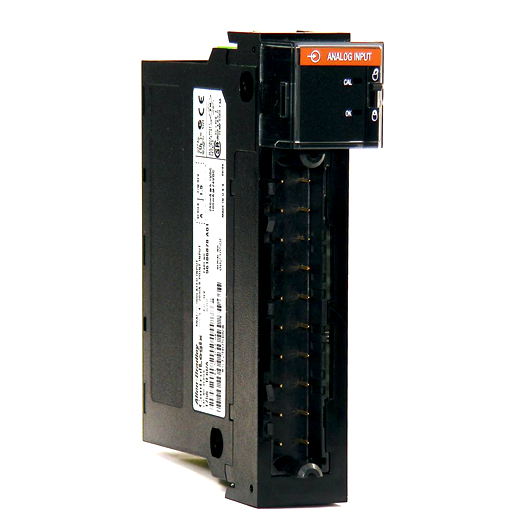

1756-IF6I | Allen Bradley Analog Input Module

Part Number: 1756-IF6ITechnical SpecificationsInputs: 6 individually isolatedInput range: ?10.5V0...10.5V0...5.25V0...21 mA(over-range indication when exceeded)Resolution:16 bits10.5V: 343 V/bit0...10.5V: 171 V/bit0...5.25V: 86 V/bit0...21 mA: 0.34 A/bitCurrent draw @ 5.1V: 250 mACurrent draw @ 24V: 100 mATotal backplane power: 3.7 WPower dissipation, max: Voltage: 3.7 WCurrent: 4.3 WThermal dissipation:Voltage: 12.62 BTU/hrCurrent: 14.32 BTU/hrInput impedance:Voltage: > 10 MCurrent: 249Open circuit detection time: Positive full scale reading within 5 sOvervoltage protection, max:Voltage: 120V AC/DCCurrent: 8V AC/DC (with on-board current resistor)Normal mode noise rejection: 60 dB @ 60 Hz?Common mode noise rejection:120 dB @ 60 Hz100 dB @ 50 HzChannel bandwidth: 15 Hz (-3 dB)?Settling time: Settling time?Calibrated accuracy 25 ?C (77 ?F): Better than 0.1% of rangeCalibration interval: 6 monthsOffset drift: 2 V/?CGain drift with temperature:Voltage: 35 ppm/?C, 80 ppm/?C maxCurrent: 45 ppm/?C, 90 ppm/?C maxModule error: 0.54% of rangeModule input scan time, min:25 ms min floating point10 ms min integer?On-board data alarming: YesScaling to engineering units: YesReal-time channel sampling: YesData format: Integer mode (left justified, 2s complement) IEEE 32-bit floating pointModule conversion method: Sigma-DeltaIsolation voltage: 50V (continuous), basic insulation type, input channels-to-backplane, and input channel-to-channelRoutine tested at 1350V AC for 2 sModule keying: Electronic, software configurableRTB keying: User-defined mechanicalSlot width: 1Wire category: 2?North American temperature code: T4AIEC temperature code: T4Enclosure type: None (open-style)NOTE:Notch filter dependent.Use this conductor category information for planning conductor routing as described in the system-level installation manual.
