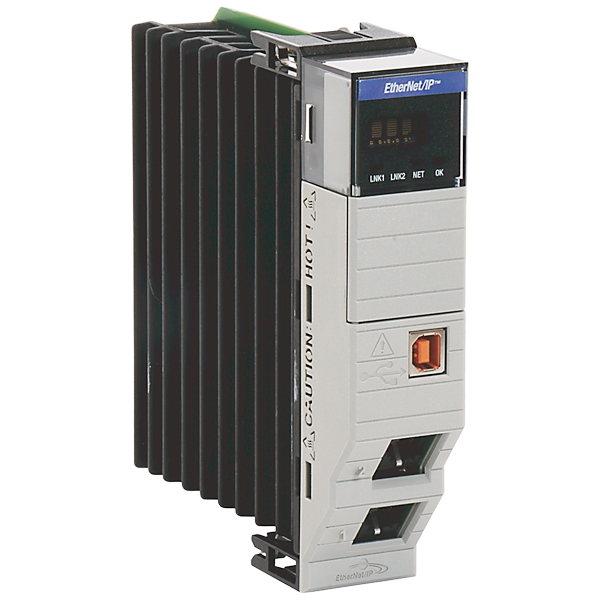

1756-EN2TR | Allen Bradley EtherNet/IP Communication Module Dual Port

Cat. Number: 1756-EN2TRModel: EtherNet/IP Communication Module Dual PortManufacturer: Allen BradleyCondition: New & Original in Factory PackingFactory Warranty: 12 MonthsSpecificationsModel: 1756-EN2TRModule location: Any slot in the ControlLogix chassisBackplane current (mA) at 5.1V DC: 1ABackplane current (mA) at 24V DC: 3 mAIsolation: 30 V (continuous), Basic Insulation Type, Ethernet to systemNo isolation between USB and systemType tested at 853V AC for 60 sPower consumption, max: 5.1 WPower dissipation: 5.1 WWire size:Ethernet connections:RJ45 connector according to IEC 60603-7, 2 or 4 pair Category 5e minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702.Wiring category: 1 - on communication portsNorth American temp code: T4ARecommended USB cable for USB port: For hazardous environments, Samtec cable, PN RSP-119350USB port: USB 1.1; USB device; USB series B receptacleEnclosure type rating: None (open-style)
