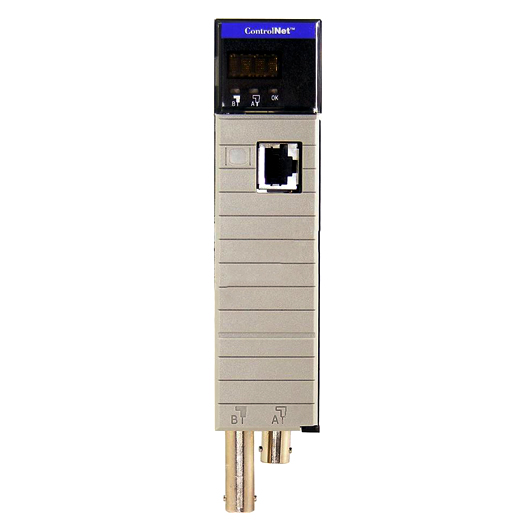

1756-CNBR/D | Allen Bradley ControlLogix ControlNet Interface Module

Product Number: 1756-CNBR/DModel: ControlLogix ControlNet Interface Module Manufacturer: Allen BradleyCondition: New & Original in Factory PackingFactory Warranty: 12 MonthsModel1756-CNBR/DConfigurationRedundantControlNet communication rate5 MbpsLogix communication connections40 48Connections supported, max64Number of nodes, max99Current draw @ 5.1V DC970 mACurrent draw @ 24V DC1.7 mAPower dissipation5.1 WThermal dissipation17.4 BTU/hrIsolation voltageStandard: 30V (continuous), basic insulation type, ControlNet network to backplaneRedundant: 30V (continuous), basic insulation type, ControlNet A/B to backplane, and ControlNet A to ControlNet BUSB to backplane and USB to ControlNetNo isolation between NAP or USB and backplaneType tested at 500V AC for 60 sWeight, approx.0.293 kg (0.64 lb)Slot width1Module locationChassis-based, any slotControlNet port2 ControlNet BNCControlNet cable1786-RG6 quad shield RG6 coaxial cableNAP port1 NAP RJ45NAP cable1786-CPWiring category?1 - on ControlNet ports3 - on NAP portsNorth American temperature codeT4AIEC temperature codeT4Enclosure type ratingNone (open-style)The USB port is intended for temporary local programming purposes only and not intended for permanent connection. Do not use the USB port in hazardous locations.
