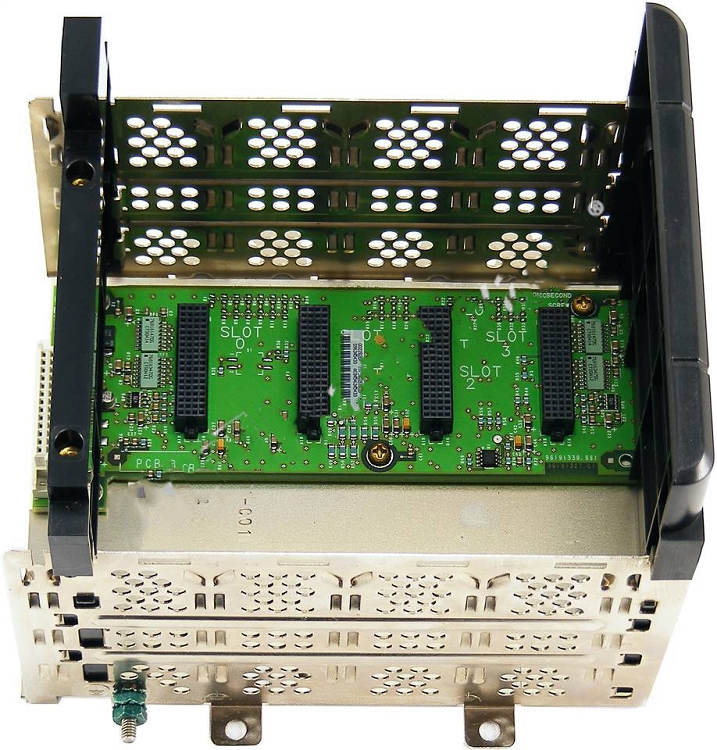

1756-A4 | Allen Bradley ControlLogix Standard Chassis
Артикул: QT-205
от 376 788 ₸
В наличии: 1
Предложения складов
Склад
Цена
В тенге
Остаток
Доставка
склад-3
795,60 USD
376 788 ₸
1
30–45 дней
Характеристики
Condition
New & Original in Factory Packing
Estimated Lead Time
Usually Ships in 1 - 7 Working Days
Factory Warranty
12 Months
ID каталога
206
Manufacturer
Allen Bradley
Model
ControlLogix Standard Chassis
Part Number
1756-A4
Shipping Weight
2 Kg
Артикул
1756-A4
Описание
Specifications:Model1756-A4Backplane current, chassis/slot max @ 1.2V DC1.5 A/-Backplane current, chassis/slot max @ 3.3V DC4 A/4 ABackplane current, chassis/slot max @ 5.1V DC15 A/6 ABackplane current, chassis/slot max @ 24V DC2.8 A/2.8 APower dissipation, max4 WIsolation voltageDetermined by installed power supply and modulesSlots4Mounting methodOnly horizontalCabinet size (HxWxD), min50.8 x 50.8 x 20.3 cm(20 x 20 x 8 in.)Weight, approx0.75 kg (1.7 lb)LocationPanelWire sizeFunctional Earth Ground - 8.3 mm2 (8 AWG) solid or stranded copper wire rated at 90 ?C (194 ?F) or greaterProtective Earth Ground - 2.1 mm2 (14 AWG) solid or stranded copper wire rated at 90 ?C (194 ?F) or greaterNorth American temperature codeT5IEC temperature codeT4Enclosure type ratingNone (open-style)
