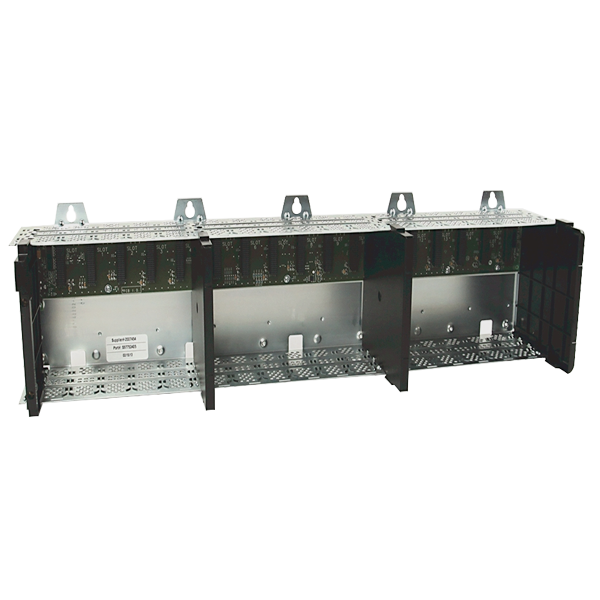

1756-A17/B | Allen Bradley ControlLogix Standard Chassis

Product Number: 1756-A17/BTechnical SpecificationsModel: 1756-A17/BBackplane current, chassis/slot max @ 1.2V DC: 1.5 A/-Backplane current, chassis/slot max @ 3.3V DC: 4 A/4 ABackplane current, chassis/slot max @ 5.1V DC: 15 A/6 ABackplane current, chassis/slot max @ 24V DC: 2.8 A/2.8 APower dissipation, max: 6 WIsolation voltage: Determined by installed power supply and modulesSlots: 17Mounting method: Only horizontalCabinet size (HxWxD), min: 76.2 x 91.4 x 20.3 cm (30 x 36 x 8 in.)Weight, approx: 2.20 kg (4.8 lb)Location: PanelWire size:Functional Earth Ground - 8.3 mm? (8 AWG) solid or stranded copper wire rated at 90 ?C (194 ?F) or greaterProtective Earth Ground - 2.1 mm? (14 AWG) solid or stranded copper wire rated at 90 ?C (194 ?F) or greaterNorth American temperature code: T5IEC temperature code: T5Enclosure type rating: None (open-style)
