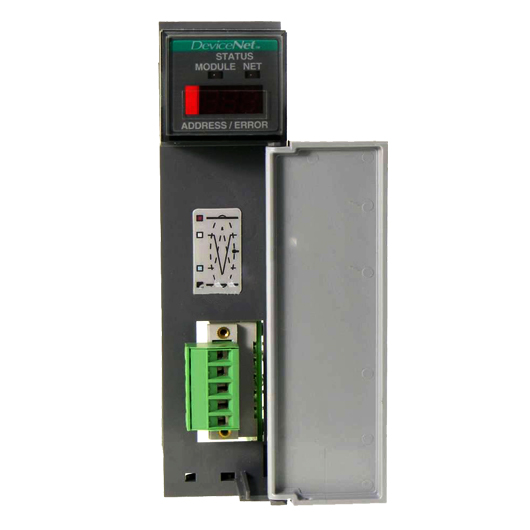

1747-SDN | Allen Bradley DeviceNet Scanner Module

Product Number : 1747-SDNModel1771-SDNModule locationSLC 5/02 or later chassisModule defaultsNode Address 63Baud Rate 125 KbpsPower consumption- Backplane current- DeviceNet5V DC, 500 mA24V DC, 90 mA Class 2Isolation voltage30V (continuous), Basic Insulation TypeTested at 500V AC for 60 s, DeviceNet to backplaneTemperature, operatingIEC 60068-2-1 (Test Ad, Operating Cold),IEC 60068-2-2 (Test Bd, Operating Dry Heat),IEC 60068-2-14 (Test Nb, Operating Thermal Shock):0...60?C (32...140?F)Temperature, non-operatingIEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold),IEC 60068-2-2 (Test Bc, Unpackaged Nonoperating Dry Heat),IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock):-40...85?C (-40...185?F)Relative humidityIEC 60068-2-30 (Test Db, Unpackaged Damp Heat):5 95% non-condensingVibrationIEC60068-2-6 (Test Fc, Operating):2 g @10 500 HzShockIEC60068-2-27:1987, Test Ea (Unpackaged shock, ES#002)Operating 30 gNon-operating 50 gEmissionsCISPR 11:Group 1, Class A (with appropriate enclosure)ESD immunityIEC 61000-4-2:6 kV contact discharges8 kV air dischargesRadiated RF immunityIEC 61000-4-3:10 V/m with 1 kHz sine-wave 80% AM from 80 2000 MhzEFT/B immunityIEC 61000-4-4:+2 kV at 5 kHz on communication portsSurge transient immunityIEC 61000-4-5:?2 kV line-earth(CM) on communications portsConducted RF immunityIEC 61000-4-6:10 Vrms with 1 kHz sine-wave 80% AM from 150 kHz 80 MHzMagnetic field immunityIEC 61000-4-8:30A/m long duration at 50 HzEnclosure type ratingNone (open style)Wiring- Size- Category?Refer to DeviceNet Media Design Installation Guide2 on communication ports10-pin Linear plug- Torque- Catalog number0.6 0.8 Nm (5 7 lb-in)1787-PLUG10RNorth American temperature codeT5(1) Use this Conductor Category information for planning conductor routing. Refer to Industrial Automation Wiring and Grounding Guidelines.
