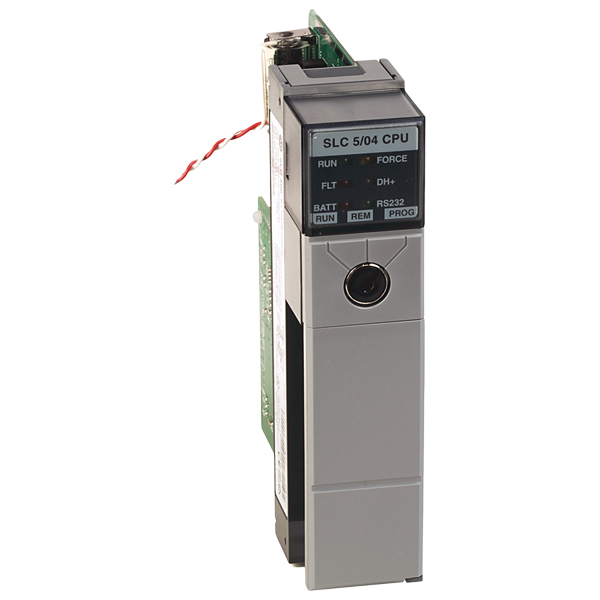

Product Number: 1747-L541Model: SLC 5/04 ProcessorManufacturer: Allen BradleyCondition: New & Original in Factory PackingFactory Warranty: 12 MonthsTechnical SpecificationsMemory (words): 16 KI/O capacity, max: 4096 discrete inputs/4096 discrete outputsLocal system, max: 3 chassis / 30 slotsProgramming instructions: 107Typical scan time?: 0.9 ms/KBit execution (XIC): 0.37 sProgramming software: SLC 5/03s and SLC 5/04s: RSLogix 500, SLC 5/05s: RSLogix 500Power supply loading at 5V dc:500 mA for the SLC 5/03 processor1.0 A for the SLC 5/04 and 5/05 processorsPower supply loading at 24V dc:175 mA for the SLC 5/03 processor0 mA for the SLC 5/04 processor?0 mA for the SLC 5/05 processorProgram scan hold-up time after loss of power: 20 ms...3 s (dependent on power supply loading)Noise immunity: NEMA Standard ICS 2-230Vibration: Displacement: 0.015 in., peak-to-peak at 5-57 HzAcceleration: 2.5 g at 57...2000 HzShock, operating: 30 gAmbient temperature rating, operating: 0...60 ?C (32...140 ?F)Ambient temperature rating, storage: -40...85 ?C (-40...185 ?F)Humidity: 5 to 95% without condensationAgency certification:UL Listed Industrial Control EquipmentC-UL Listed Industrial Control Equipment for use in CanadaUL Listed Industrial Control Equipment for use in Class I, Division 2, Hazardous Locations Groups A, B, C or DCE compliant for all applicable directivesC-Tick marked for all applicable actsThe scan times are typical for a 1 K ladder logic program consisting of simple ladder logic and communication servicing. Actual scan times depend on your program size, instructions used, and the communication protocol.SLC 5/04 Processors manufactured prior to April 2002 draw 200 mA at 24V dc. Check your label to verify your processors current draw.
