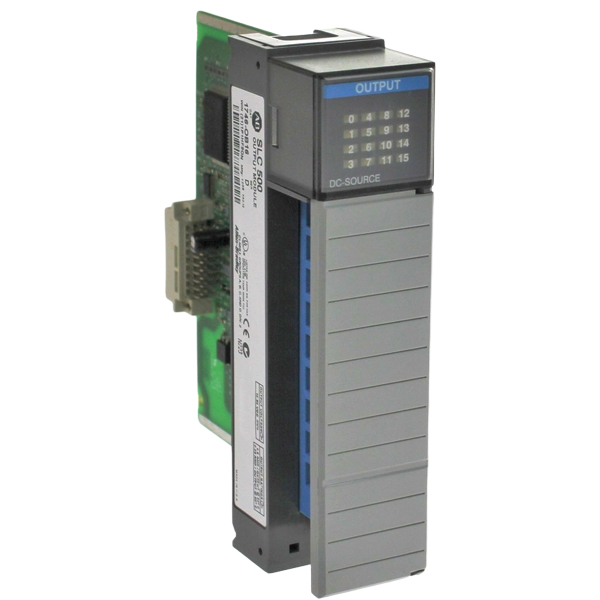

1746-OB16 | Allen Bradley 1746 Digital DC Output Module

Part Number: 1746-OB16Model: Digital DC Output ModuleManufacturer: Allen BradleyTechnical SpecificationsModel: 1746-OB164Voltage Category: 24V DC Signal OutputNumber of outputs: 16Point per common: 16Voltage, operating (V DC): 10...50 (source)Backplane current comsumption: 5V DC - 0.280 A24V DC - 0.0 ASignal delay, max resistive load:On = 0.1 msOff = 1.0 msOff-state leakage, max¹: 1 mALoad current, min: 1 mAContinuous current per point²: 0.50 A @ 30°C (86°F)0.25 A @ 60°C (140°F)Continuous current per module:8.0 A @ 30°C (86°F)4.0 A @ 60°C (140°F)On-state voltage drop, max: 1.2V @ 0.50 ASurge current per point³: 4.0 A for 10 msTo limit the effects of leakage current through solid-state outputs, a loading resistor can be connected in parallel with your load. For transistor output 24V DC operation, use a 5 K? W resistor.Recommended surge suppression: For transistor outputs when swicthing 24V DC inductive loads, use a 1N4004 diode reverse-wired across the load.Repeatability is once every 1 s at 30°C (86°F). Repeatability is once every 2 s at 60°C (140°F).Removable terminal block.
