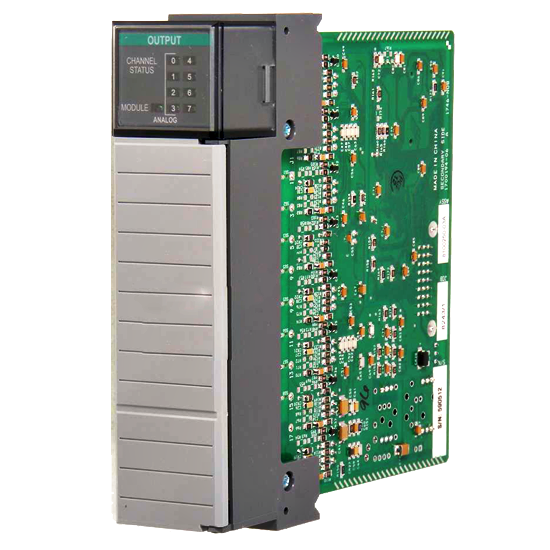

1746-NO8I | Allen Bradley 1746 Analog Output Module

Technical InformationI/O Chassis Location: Any 1746 chassis slot except slot 0Backplane Current Consumption (max): 120 mA at 5V dc Backplane Power Consumption (typical): 5.6W Optional External 24V dc Power Supply: +24 dc +/-10% (N.E.C. Class 2 required) Number of Channels: 8 single-endedLED Indicators: Eight green channel status indicators, one for each channel; One green module status indicatorCalibration: Factory calibratedThermal Dissipation: 6.6WField Wiring to Backplane Isolation: 500V dcRecommended Cable: Belden 8761 (shielded, twisted-pair) or equivalentWire Size (maximum): Two 14 to 24 AWG wire per terminalGrounding Wire (optional): ? inch wide (minimum) braidRequired for some applications if SLC 24V is not readily available.
