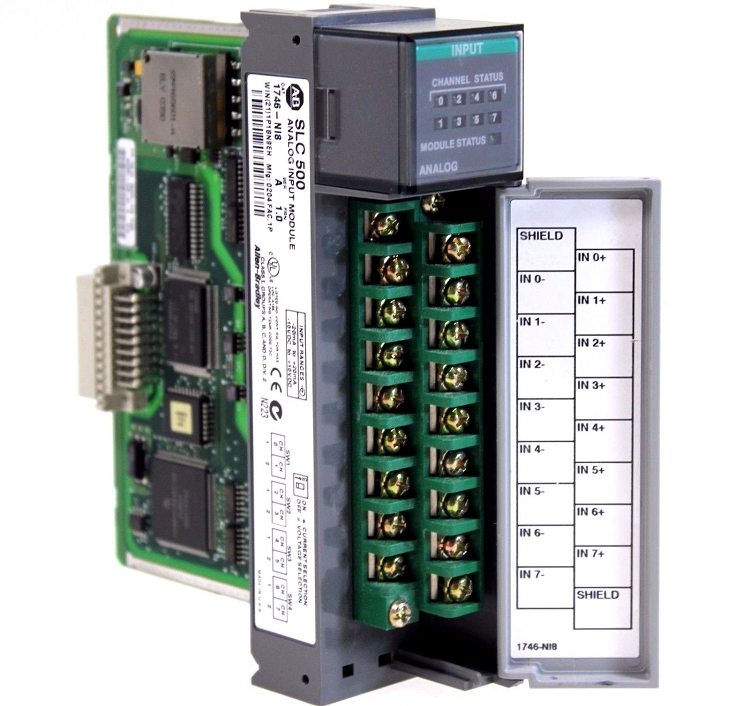

1746-NI8 | Allen Bradley SLC 500 Analog Input Module

Electrical SpecificationsModel1746-NI8Backplane Current Consumption200 mA at 5V dc 100 mA at 24V dcBackplane Power Consumption3.4W maximum (1.0W at 5V dc, 2.4W at 24V dc)Number of Channels8 (backplane isolated)I/O Chassis LocationAny I/O module slot except slot 0A/D Conversion MethodSuccessive appoximation, switched capacitorInput FilteringLow-pass digital filter with programmable filter frequenciesNormal Mode Rejection (between [+] input and Analog Com)Provided by low-pass filterCommon Mode Rejection (between inputs and chassis ground)Greater than or equal to 75 dB at DC Greater than or equal to 100 dB at 50/60 HzInput Filter Frequencies1 Hz 2 Hz 5 Hz 10 Hz 20 Hz 50 Hz 75 HzCalibrationThe module performs continuous autocalibrationIsolation500V dc continuous between the analog inputs and the backplane 530V ac and 750V dc pulse withstand for one secondCommon-Mode Voltage Range10.5V (15V maximum between any two terminals)
