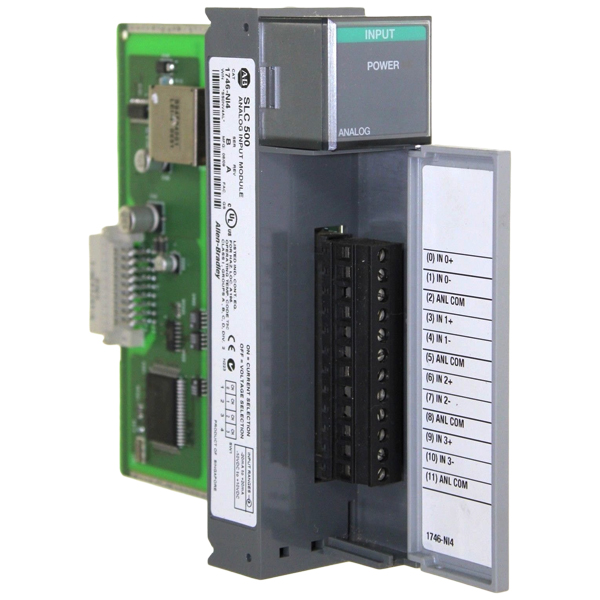

1746-NI4 | Allen Bradley 4 Point Analog Input Module
Артикул: QT-5
от 362 012 ₸
В наличии: 1
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|---|---|---|---|
| склад-3 | 764,40 USD | 362 012 ₸ | 1 | 30–45 дней |
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Estimated Lead Time | Ships in 5 Working Days |
| Factory Warranty | 12 Months |
| ID каталога | 293 |
| Manufacturer | Allen Bradley |
| Model | 4 Point Analog Input Module |
| Part Number | 1746-NI4 |
| Shipping Weight | 1 Kg |
| Артикул | 1746-NI4 |
Описание
Technical SpecificationsModel: 1746-NI4Converter Resolution: 16 bitRepeatability: ?1 LSBLocation of LSB in I/O image word: 0000 0000 0000 0001Non linearity: 0.01%Common Mode Voltage Range: -20 to +20 voltsCommon Mode Rejection at 0 to 10 Hz (min.): 50 dBCommon Mode Rejection at 60 Hz (min.): 105 dBNormal Mode Rejection at 60 Hz (min.): 55 dBChannel Bandwidth: 10 HzStep Response: 60 ms at 95%Conversion Method: Delta Sigma ModulationImpedance to ANL COM: 380 ohms¹Impedance channel to channel: 760 ohms²The value listed is for Series B and greater. For Series A, the impedance to ANL COM is 500K Ohms.The value listed is for Series B and greater. For Series A, the impedance channel to channel is 500K Ohms.
