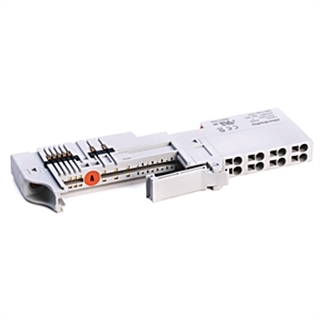

Model1734-TOP Dimensions (HxWxD), Approx.49 x 12 x 144 mm (1.93 x 0.47 x 5.67 in.)Weight, Approx. 63.8 g (2.25 oz)Wire Size0.25... 2.5 mm² (22...14 AWG) solid or stranded copper wire rated at 75°C (167°F ), or greater, 1.2 mm (3/64 in.) insulation maxCategoryDependent on I/O module installed in terminal baseSupply voltage300V max terminal voltage Supply power8A max terminal currentIsolation voltageCapable of 240V (continuous), Reinforced Insulation Type, or the lesser of the installed module.Enclosure Type RatingNone (open-style)Field Power Bus Supply Voltage28.8V DC, 120/240V ACTerminal Base Screw Torque1734-TOP and 1734-TOP3 0.6 Nm (7 lb-in)Terminal Block Torque0.4Nm (3.5 lb-in) for 1734-TOP and 1734-TOP3 onlyUse this conductor category information for planning conductor routing as described in Industrial Automation Wiring and Grounding Guidelines.
