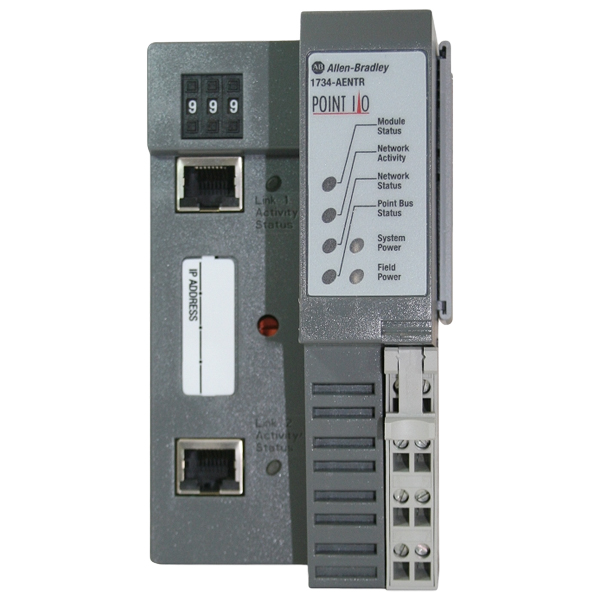

1734-AENTR | Allen Bradley 2-Port EtherNet/IP I/O Module

Specifications:Model1734-AENTRIndicators3 red/green status indicators on CPU:- Module status- Network status (Ports 1 and 2 combined)- PointBus status1 green/yellow status indicator on CPU:- Network activity (Ports 1 and 2 combined)2 green/yellow status indicators on base:- Link 1 activity/status- Link 2 activity/status2 green power supply status indicators on DC-DC Converter:- System power (5V DC to PointBus Out)- Field power (24V DC from Field In)Power consumption10.4 W max @ 28.8V DCPower dissipation6.3 W max @ 28.8V DCInput overvoltage protectionReverse polarity protectedThermal dissipation21.5 BTU/hr max @ 28.8V DCIsolation voltage50V (continuous), Basic Insulation Type, Network to Power, Network to Backplane, Power to Backplane, and Network to Network.Type tested at 1930V DC for 60 sField power supply10 28.8V DC, 10A maxField power output10 28.8V DC, 9A maxModule input10 28.8V DC, 1000 mAPointBus output5V DC, 0.8A maxDimensions (HxWxD), approx76.2 x 73.0 x 133.4 mm (3.0 x 2.87 x 5.25 in.)Enclosure type ratingNone (open-style)Terminal base screw torque0.8 Nm (7 lb-in)Weight, approx.280 g (0.62 lb)Wiring category¹1 - on power ports2 - on communications portsWire sizePower connections:0.34 2.1 mm² (22 14 AWG) solid or stranded copper wire rated at 75°C (167°F ) or greater, 1.2 mm (3/64 in.) insulation maxEthernet connections:RJ-45 connector according to IEC 60603-7, 2 or 4 pairCategory 5e minimum cable according to TIA 568-B.1 orCategory 5 cable according to ISO/IEC 24702North American temp codeT4IEC temp codeT4Use this Conductor Category information for planning conductor routing.
