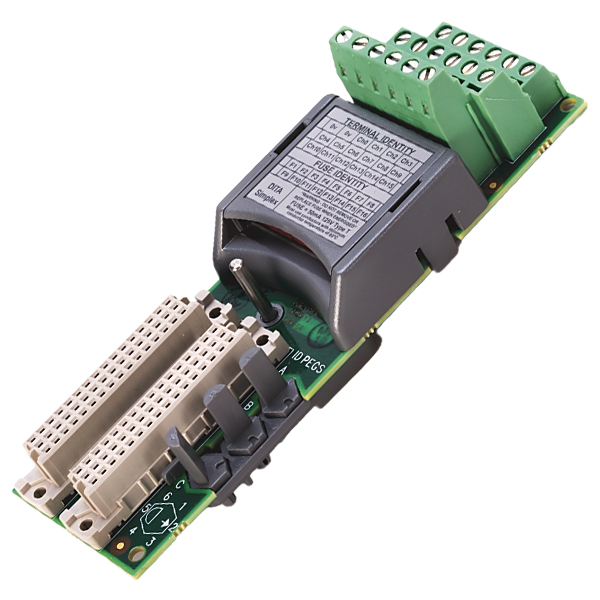

1715-TASOB8DE | Allen Bradley Termination Assembly

Part Number: 1715-TASOB8DEModel: Termination AssemblyManufacturer: Allen BradleyTechnical SpecificationsOperating voltage range, supply power and/or current ratings: 0.5 A per channel @ 18…32V DCField voltage slew rate, max: 150 V/s (1),(2)De-energized output voltage slew rate, max: 12 V/ms (3)Energized output current slew rate, max: 0.9 A/ms (3)Power dissipation:System: 3.0 W maxField Loop: 0.17 W per field loopIsolation voltage:50V (continuous), basic insulation type, I/O ports to backplaneNo isolation between individual I/O portsType tested at 500V AC for 60 sWeight, approx:I/O base unit: 133 g (5 oz)Termination assembly: 133 g (5 oz), 260 g (10 oz)Dimensions (H x W x D), approx: 166 x 42 x 118 mm (6.5 x 1.625 x 4.625 in.)Wire size: Single 0.75…1.5 mm2 (18…16 AWG) solid or stranded copper wire rated at 85 °C (185 °F), or greaterWiring category: 2 - on signal ports (4)Fuse, type: I/O: 10 A, 125V, Type FI/O Power Source: 5 A max, 32V DC, minPilot duty rating: 16VA, 1.5 inrushNorth American temperature code: T4IEC temperature code: T4Enclosure type: None (open-style)Limit not applicable if all outputs are energized.Limit not applicable if perturbations are less than 2.0 Vpp or last less than 3 minutes in any 60 minute period.Limit not applicable to transgressions that last less than the process safety time configured for the module.Transgression of the slew rate limits identified previously can lead to channel failure that results from diagnostics that are otherwise designed to ensure channels are operating within their defined safety accuracy.Use this conductor category information for planning conductor routing as described in the system-level installation manual. See the Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1.
