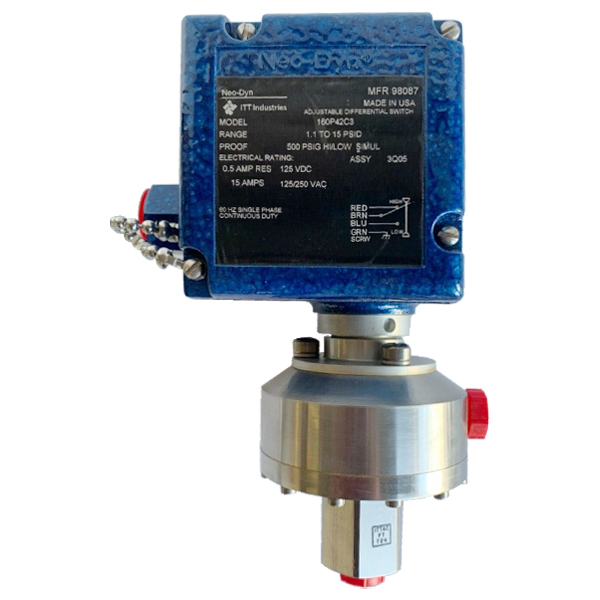

160P44C6BMS | ITT Neo-Dyn Series 160P Differential Pressure Switch

Ordering Information Model 160P Neo-Dyn® Series 160P Differential Pressure Switch Wetted Material 4 Stainless steel, Teflon coated polyimide diaphragm and Buna-N O-Rings Adjustable Range 4 .3 psid dec. to 18 psid inc. (0.0 bar dec. to 1.2 bar inc.) Electrical Form C 11 amp, 1/4 hp at 125 or 250 VAC; 5 amp resistive, 3 amp inductive at 28 VDC; .5 amp resistive at 125 VDC Enclosure 6 Includes an explosion proof, hermetically-sealed electrical assembly. EX d IIC.Division 1 and 2, Class I, Groups A, B, C, and D; Class II, Groups E, F, and G.NEMA 4X, 7, and 9; IP66. Leads are factory sealed and Pressure Switches are Dual Seal Certified. Miscellaneous BMS Viton O-RingGold electrical contacts for extremely low current applications(1 Amp at 125 VAC; 1 Amp Res, 0.5 Amp Ind. at 28 VDC)Stainless steel diaphragm — No low over high capability (Ranges 2 & 4 and Wetted Material 4 only)
