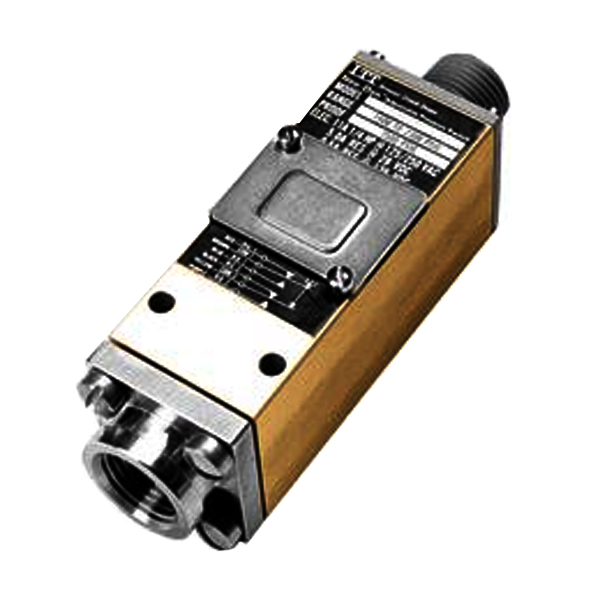

Ordering Information Series 132P Pressure Switch Wetted Material 4 316 stainless steel port and diaphragm, Buna-N O-Ring Adjustable Range 8 1 psig dec. to 30 psig inc. (0.1 bar dec. to 2.1 bar inc.) Electrical Form C 11 amps and ¹/4 hp 125 or 250 VAC; 5 amps resistive, 3 amps inductive 28 VDC; .5 amps resistive 125 VDC Enclosure 6 Explosion proof • factory sealed • hermetically sealed electrical assembly P/N 057-0030 (C Form); P/N 057-0057 (CC Form). Underwriters’ Laboratories, Inc. listed (file #E56677) or Canadian Standards Association certified (file #34146) for Division 1 and 2; Class I, Groups A, B, C and D; Class II, Groups E, F and G hazardous locations (NEMA 7 and 9) Miscellaneous AGHJ Epoxy paint exterior — extra protection for severe environments¹/2" - 14 NPT Female PortStainless steel bodyAnnealed stainless steel port screws for H2S environments — Consult factory for reduced system and proof pressure ratings
