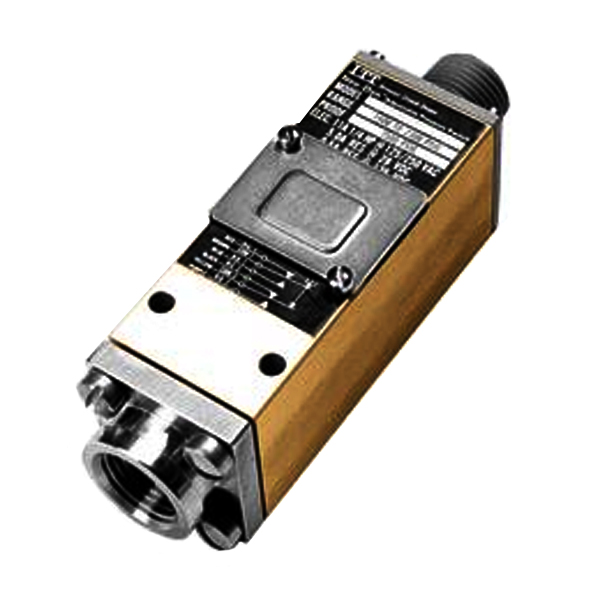

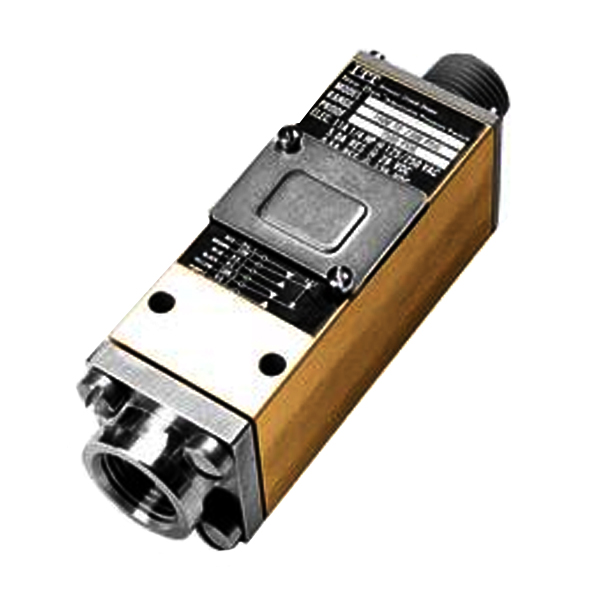

132P41C6ABG | ITT Neo-Dyn 132P Series Pressure Switch

Ordering Information Series 132P Pressure Switch Wetted Material 4 316 stainless steel port and diaphragm, Buna-N O-Ring Adjustable Range 1 30 psig dec. to 250 psig inc. (2.1 bar dec. to 17.2 bar inc.) Electrical Form C 11 amps and ¹/4 hp 125 or 250 VAC; 5 amps resistive, 3 amps inductive 28 VDC; .5 amps resistive 125 VDC Enclosure 6 Explosion proof • factory sealed • hermetically sealed electrical assembly P/N 057-0030 (C Form); P/N 057-0057 (CC Form). Underwriters’ Laboratories, Inc. listed (file #E56677) or Canadian Standards Association certified (file #34146) for Division 1 and 2; Class I, Groups A, B, C and D; Class II, Groups E, F and G hazardous locations (NEMA 7 and 9) Miscellaneous ABG Epoxy paint exterior — extra protection for severe environmentsViton O-Ring¹/2" - 14 NPT Female Port
