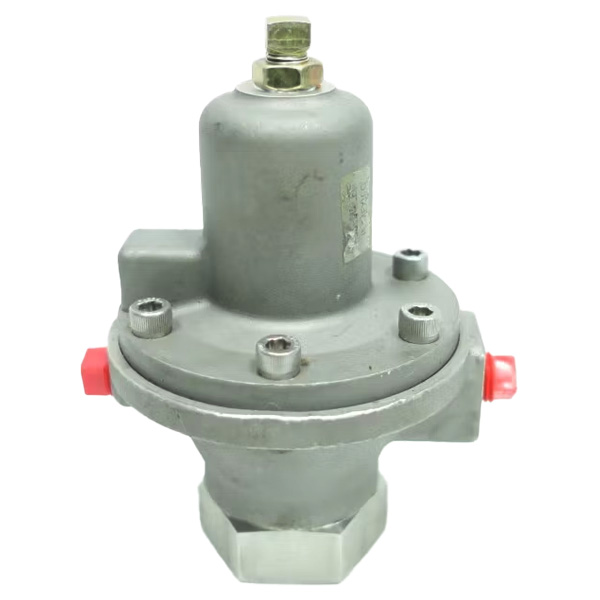

1301F-3 | Fisher Type 1301F High Pressure Regulator
Артикул: QT-93119
от 348 941 ₸
В наличии: 1
Предложения складов
Склад
Цена
В тенге
Остаток
Доставка
склад-3
736,80 USD
348 941 ₸
1
30–45 дней
Характеристики
Condition
New & Original in Factory Packing
Estimated Lead Time
Usually Ships in 7 - 10 Working Days
Factory Warranty
12 Months
ID каталога
101134
Manufacturer
Fisher
Model
Type 1301F High Pressure Regulator
Part Number
1301F-3
Shipping Weight
5 Kg
Артикул
1301F-3
Описание
FeaturesDurable Stainless Steel DiaphragmSpare Valve Disk ProvidedVersatilityANSI Class VI Shutoff Specifications Available Constructions inlet 6000 psig / 414 bar, outlet ranges 10 to 225 psig / 0.69 to 15.5 bar Body Size and End Connection Style 1/4 NPT Maximum Inlet Pressure Air and Gas: 6000 psig / 414 barLiquid: PTFE Disk: 1000 psig / 69.0 bar Nylon (PA) Disk: Water: 1000 psig / 69.0 bar, Other Liquids: 2000 psig / 138 bar Outlet Pressure Ranges 10 to 225 psig / 0.69 to 15.5 bar in three ranges Standard Temperature Capabilities Nylon Disk & Neoprene Gaskets: -20 to 180°F / -29 to 82°C High Temperature Capabilities PTFE Disk & FKM Gaskets: -20° to 400°F / -29 to 204°PTFE Disk & EPDM Gaskets: -40 to 300°F / -40 to 149°C Pressure Registration Internal
