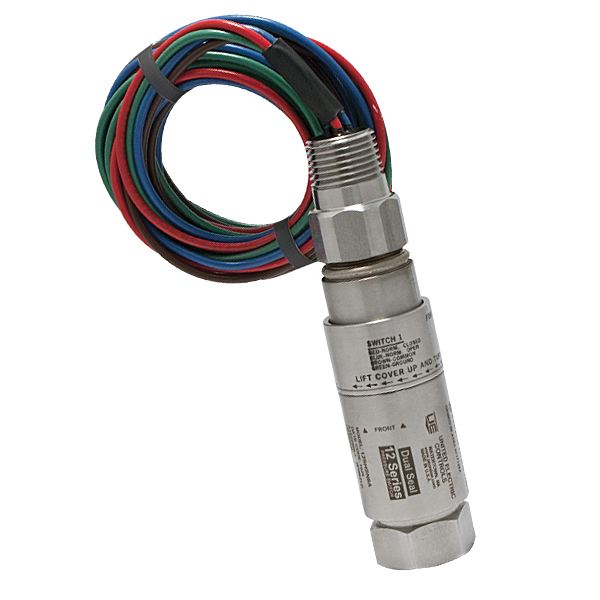

12SHSN6H | United Electric Pressure Switch

Product Number: 12SHSN6HOverviewClass 1, Divisions 1 & 2, Zone 1 UL listed, cUL certified, ATEX flame-proof & CE (LVD, PED) compliant, dual seal compliance to ANSI/ISA 12.27.01 Compact, 316 stainless steel enclosure Belleville spring design provides set-point stability and vibration resistance SPDT or DPDT hermetically sealed switches Variety of pressure sensor materials, including welded stainless steel diaphragm Convenient field adjustment through concealed adjustment compartment; optional cover locking ring prevents incidental tampering 72” lead-wire with strain relief provided Adjustable set-point ranges:- Pressure: 1 to 12,500 psi0,1 to 861,9 bar- Differential Pressure: 0.7 “wcd to 150 psid1,7 mbar to 10,3 bar- Temperature: -130 to 650 ºF-90 to 343.3 ºC
