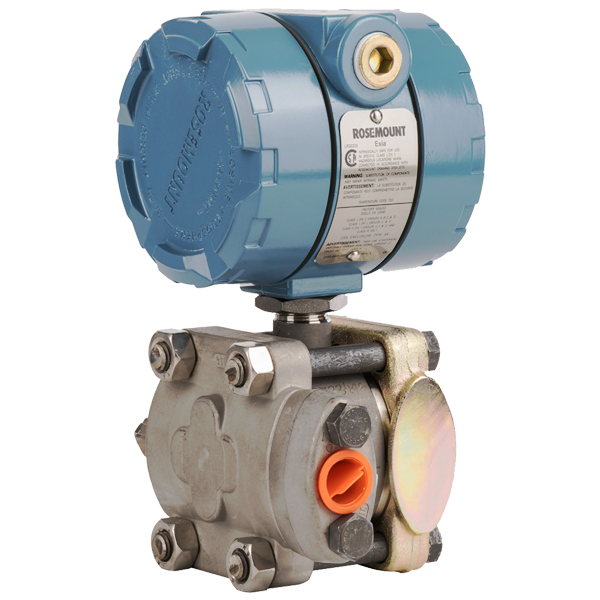

1151DP5S22B2DFK6Q4 | Rosemount 1151 Pressure Transmitter

Ordering Information Model 1151DP Differential Pressure Transmitter Pressure Ranges (URL) 5 750 inH2O (186.4 kPa) Transmitter Output S 4–20 mA with Digital Signal based on HART Protocol (Smart) Material of Construction(1) 22 Flanges/Adapters: 316 SSTDrains/Vents: 316 SSTDiaphragms: 316L SSTFill Fluid: Silicone Mounting Brackets B2 Bracket, Panel Mount Process Connections(2) DF ½–14 NPT Flange adapter(s)- Material determined by flange material Product Certifications K6(3) CSA Explosion-Proof, Dust Ignition-proof, Intrinsically Safe, Division 2 Special Certifications Q4 Calibration Certificate Bolts and conduit plugs are plated carbon steel.Allowable combinations are: D1, D2, D6 or D6, S1.Not available with Output Codes E, G, L, or M.
