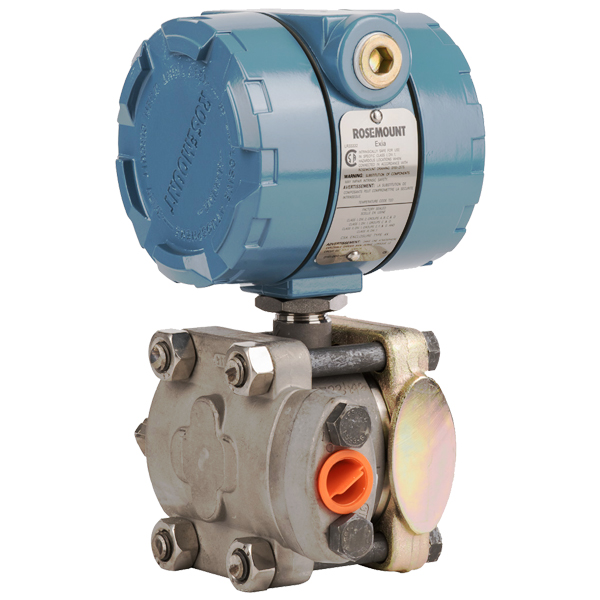

1151DP5E12B1 | Rosemount 1151 Pressure Transmitter

Артикул: QT-39902
от 384 176 ₸
В наличии: 0

Предложения складов

СкладЦенаВ тенгеОстатокДоставка

Характеристики

Estimated Lead Time15 Weeks
ID каталога43710
ManufacturerRosemountOutput4-20 mA dc; 10-50 mA dcSmart 4-20 mA dc, 4-20 mA dc square root of input with adjustable damping (Flow)Range0-5" H2O to 0-1000 psidAccuracySMART: +/-0.1% of calibrated spanAnalog: +/-0.2 to +/-0.25% of calibrated spanMaterialsIsolating Diaphragms: 316L SST, Hastelloy C, Monel, Tantalum Process FlangesAdapters: Cadmium and Nickel plated CS, 316 SST, Hastelloy C, TantalumFeaturesInstalled Stability: ± 0.01% of URL for 2 yearsProtocols available include 4-20mA HART, Analog, and Low P
Model1151 Pressure Transmitter
Part Number1151DP5E12B1
Shipping Weight6 Kg
Артикул1151DP5E12B1

Описание

Part Number: 1151DP5E12B1Model: 1151 Pressure TransmitterManufacturer: RosemountOutput4-20 mA dc; 10-50 mA dcSmart 4-20 mA dc, 4-20 mA dc square root of input with adjustable damping (Flow)Range0-5" H2O to 0-1000 psidAccuracySMART: +/-0.1% of calibrated spanAnalog: +/-0.2 to +/-0.25% of calibrated spanMaterialsIsolating Diaphragms: 316L SST, Hastelloy C, Monel, Tantalum Process FlangesAdapters: Cadmium and Nickel plated CS, 316 SST, Hastelloy C, TantalumFeaturesInstalled Stability: ± 0.01% of URL for 2 yearsProtocols available include 4-20mA HART, Analog, and Low PowerDifferential, gauge and absolute pressure measurementsPressure ranges up to 6000 psi
