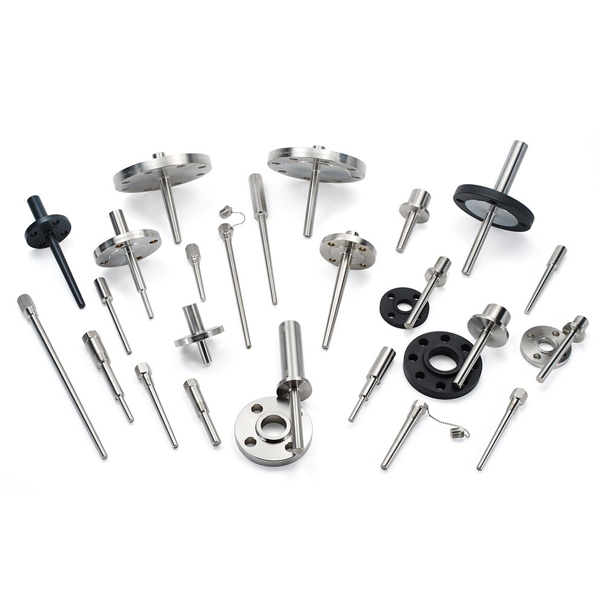

114CM0340FAJ1SC075AQ8B350D01 | Rosemount 114C Thermowell

Part Number: 114CM0340FAJ1SC075AQ8B350D01Model: 114C ThermowellManufacturer: RosemountSpecificationsThermowell Calculations: Wake frequency calculation (WFC) performed by certified engineers, order R21 for official reportDesign Modifiers: Root, bore and tip diameters can be customized for any applicationCertifications/Approvals: Material certification, NACE, CRN (see full specs for complete list of certifications)Product Tests: External pressure test, internal pressure test, dye penetration, X-ray, PMI (see full specs for complete list)FeaturesThreaded, flanged, Van Stone and welded mounting styles with stem profile options allow for application flexibilityWide selection of thermowell materials, from stainless steel to exotic materials, meets varying process specificationsOption of Wake Frequency Calculation report ensures thermowell design is compatible with process conditionsFlexible design modifiers for root, bore and tip thickness allow customization for special application requirementsVan Stone style permits differing flange material from the stem for cost-efficiencyThermowell options, including NACE, material certification and PMI, ensure material traceability or compatibilitySpecial testing options to meet process requirements including external hydrostatic pressure test, dye penetration test and moreOrdering InformationModel: 114C - Barstock temperature thermowellMade with a standard bore diameter of 0.26-in. (6.6 mm) and tip wall thickness of 0.25-in. (6.4 mm)Dimension units: M - Metric units (mm)Immersion length (U): 0340 - 340 mm \Mounting style: F - Flange, full penetration weldWeld refers to welding of the flange to thermowell stemFull penetration weld: AJ - 11/2-in. Class 300Stem style: 1 - StraightMinimum immersion length = 1-in. (25 mm)Thermowell material: SC - 316/316L dual ratedHead length (H): 075 - 75 mmInstrument connection: A - 1/2–14 NPTFemale threadsMaterial certification: Q8 - Material certificationCertificate for material conformance and traceability in accordance with EN 10204 type 3.1Tip diameter (B): B350 - 35.0 mmNon-standard bore diameter (d): D01 - 0.276-in./7.0 mmStandard = 0.26-in. (6.6 mm)
