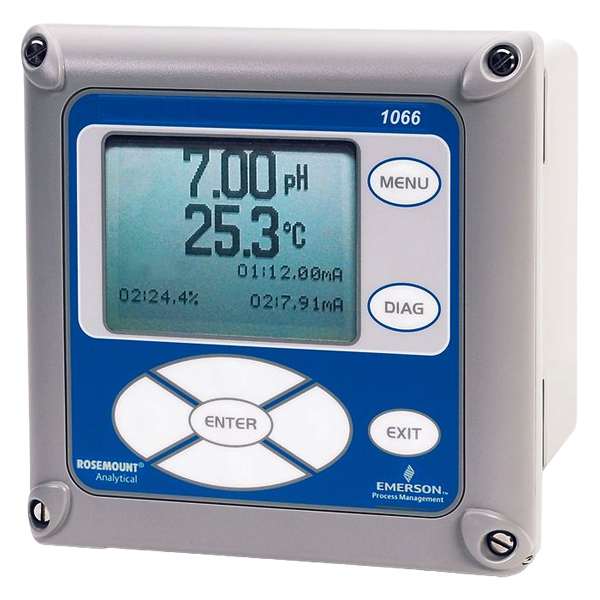

1066-P-HT-67 | Rosemount 1066 Single Channel Transmitter

SpecificationsPower Supply: Supply voltage at the transmitter terminals should be at least 12.7Vdc. Power supply voltage should cover the voltage drop on the cable plus the external load resistor required for HART communications (250 O)Weight: R2 lbs/3 lbs (1 kg/1.5 kg)Communication Protocol: HART® Communications & diagnostics: PV, SV, TV, and 4V assignable, temperatureDiagnostics: PV, SV, TV, and 4V assignableInput: One sensor input.Measurement Type: pH/ORP, resistivity/conductivity/TDS, % concentration, total and free chlorine, monochloramine, dissolved oxygen, dissolved ozone, and temperature.FeaturesFaster installation using Quick Start programmingIntrinsically Safe FM, CSA, and ATEX/IECEx Hazardous Location ApprovalsVisibility of process parameters by utilizing HART or Foundation Fieldbus digital communicationsEffortlessly connect with PLCs and DCS’ by choosing the HART or Foundation Fieldbus communication options. Ordering Information Model 1066 Single Channel Transmitter Measurement P pH/ORP Communication HT HART® Digital Communication Approvals 67 FM Approved, Intrinsically Safe, and Non-Incendive
