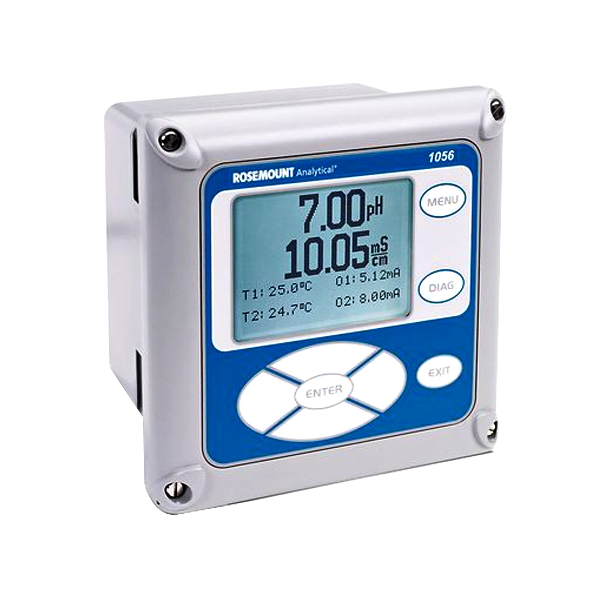

SpecificationsEnclosure Rating: Polycarbonate. Type 4X, IP65.Certifications/Approvals: FM/CSA/UL (see full specifications for complete list of certifications)Dimensions: Overall 155 x 155 x 131mm (6.10 x 6.10 x 5.15 in.). Cutout: 1/2 DIN 139mm x 139mm (5.45 x 5.45 in.)Weight: 3 lbs/4 lbs (1.5 kg/2.0 kg)FeaturesFaster installation using Quick Start programming, auto-recognition of sensor boards and modular designAt a glance view of pertinent information provided by the large customizable displayVisibility of process parameters by utilizing HART or Profibus DP digital communicationsEffortlessly connect with PLCs and DCS’ by choosing the HART or Profibus DP communication optionsOrdering InformationModel1056Dual channel transmitterPower0224 Vdc with four alarm relaysMeasurement 120Contacting conductivityMeasurement 232pH/ORP/ISECommunicationAN4-20 mA analog
