Промышленное оборудование · DME5000-224 | SICK Laser Distance

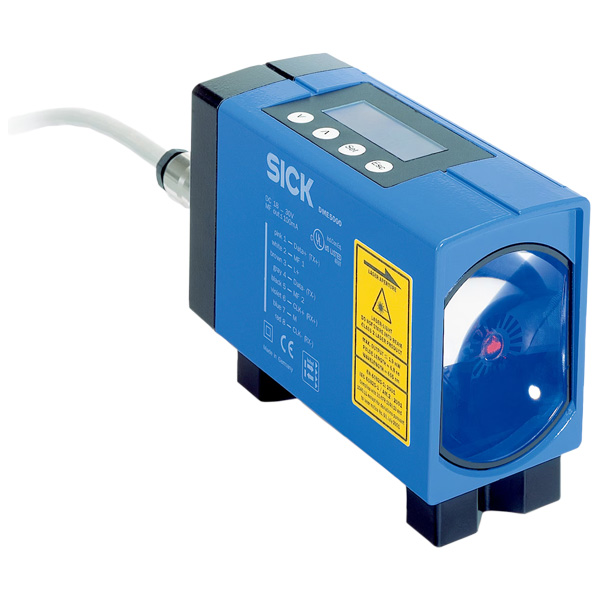

1025837 | DME5000-224 | SICK Laser Distance Sensor
Артикул: QT-92868
от 5 383 013 ₸
В наличии: 1
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|---|---|---|---|
| склад-3 | 11 366,40 USD | 5 383 013 ₸ | 1 | 30–45 дней |
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Estimated Lead Time | Usually Ships in 7 - 10 Working Days |
| Factory Warranty | 12 Months |
| ID каталога | 100882 |
| Model | Laser Distance Sensor Brand: SICK |
| Part Number | 1025837 Type: DME5000-224 |
| Shipping Weight | 3 Kg |
| Артикул | 1025837 |
| Модель | Laser Distance Sensor Brand: SICK |
Описание
Technical Details Supply voltage Vs DC 18 V ... 30 V, limit values Ripple < 5 Vpp(1) Initialization time 1.5 s(2) Housing material Metal (zinc diecast) Window material Glass Connection type Male connector, 1 x M12, 4-pin, A-coded, 1 x M16, 8-pin Indication Display Weight Approx. 1,650 g Current consumption At 24 V DC < 1,000 mA Dimensions (W x H x D) 61 mm x 101 mm x 176 mm Enclosure rating IP65 Protection class II(3) May not fall short of or exceed VS tolerances.After loss of reflector < 1 s at max. speed Vmax < 1 m/s.Reference voltage DC 32 V.
