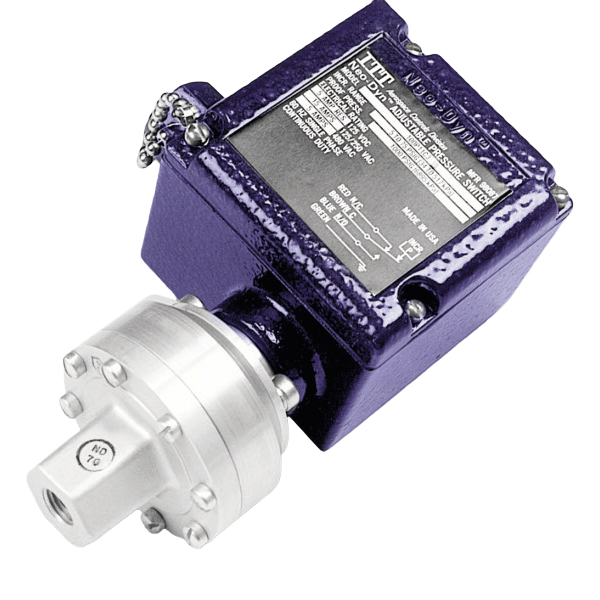

100P12C5 | ITT Neo-Dyn Series 100P NEMA 4 & 13 Pressure Switch/Internal Adjustment

Part Number: 100P12C5Model: Series 100P NEMA 4 & 13 Pressure Switch/Internal AdjustmentManufacturer: ITT Neo-DynProduct DescriptionVersatile Nega-Rate® Belleville disc spring pressure switch for a wide range of applications. Series 100 P (diaphragm sensor) for pneumatic and low impulse hydraulics up to 3000 psig system pressure.Ordering InformationModel: 100P - Series 100P Pressure Switch/Internal AdjustmentWetted Material: 1 - Aluminum port, Teflon coated polyimide diaphragm and Buna-N O-RingAdjustable Range: 2 - 9 psig dec. to 150 psig inc. (0.6 bar dec. to 10.3 bar inc.)Electrical Form: C - 15 amp at 125 or 250 VAC; 1/8, hp at 125 VAC; 1/4 hp at 250 VAC; .5 amp resistive, .04 amp inductive at 125 VDC
