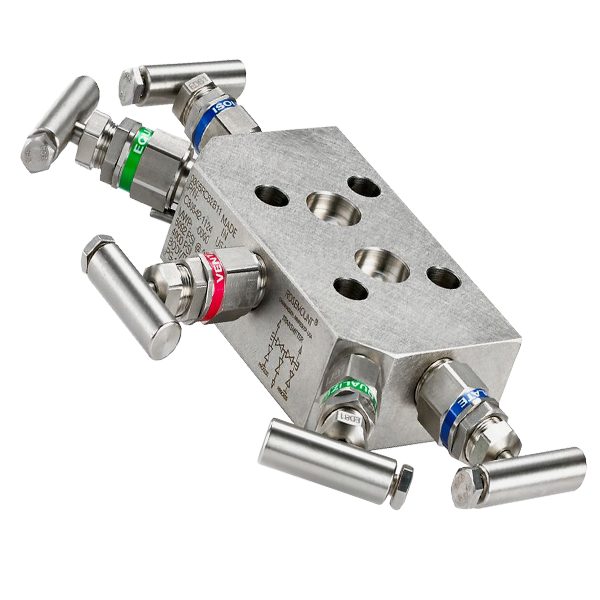

0305RC5B11B4SG | Rosemount 305 Integral Manifold

Product Number: 0305RC5B11B4SGModel: Integral ManifoldManufacturer: RosemountSpecificationsMaximum Operating Temperature: 1000°F (538°C)Manifold Material: 316 SST/316L SST, Alloy C-276, Alloy 400Packing Material: PTFE, graphite-basedProcess Connections: 1/4“-18 NPT female, 1/2“-14 NPT female, 1/2“-14 female NPT flange adapter, 12 mm ferrule tube flange adapterProcess Connection Orientation: Parallel with transmitter, 90° to transmitterCertifications: Cleaning for special services, sour gas (meets NACE MR 0175/ISO 15156, MR0103), see full specs for complete list of certificationsWarranty: Up to 5-year limited warrantyFeaturesDesigned for direct assembly to Rosemount Coplanar transmitter interface, eliminating the need for a flange50% tewer potential leak points than conventional transmitter to flange to manifold interfaceLightweight manifold design can be factory-assembled, leak-tested and calibrated for easy installation process2-, 3- and 5-valve configuration for multivariable, absolute, gage and differential pressure transmittersOrdering InformationModel: 0305 - Integral manifoldManufacturer: R - RosemountManifold style: C - CoplanarManifold type: 51 - Five valve Process connection style: B2 - 1/2–14 NPT femalePacking material: 13 - PTFEValve seat: 1 - IntegralMounting brackets: B4 - SST mounting bracket for 2-in. pipe mounting, 300 SST boltsMaterial recommendations for NACE4,5: SG - Sour gas (meets NACE MR0175/ISO 15156, MR0103/ISO 17495)NOTE:Not available with traditional manifold style T.Not available with traditional manifold style code M. Manifold style code T does not include mounting holes on process flange.Includes PTFE tape on drain/vent valves and plugs.Materials of construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103/ISO 17495 for sour refining environments.Only allowed with material of construction code 2.
