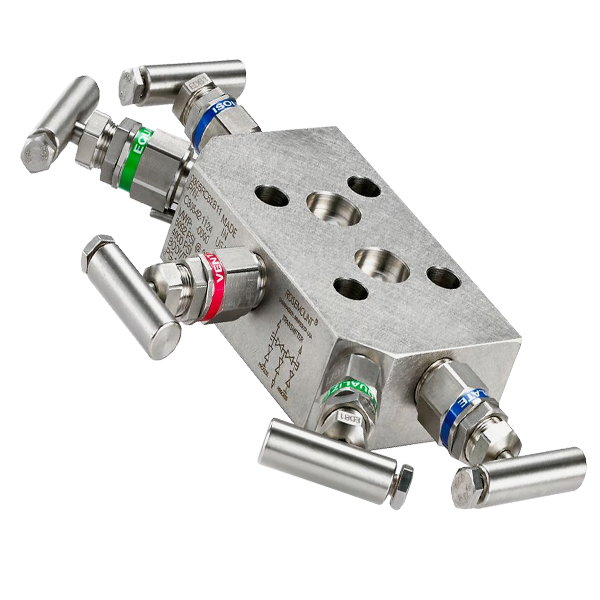

Product Number: 0305RC52B21Model: 305 Integral ManifoldManufacturer: RosemountCondition: New & Original in Factory PackingFactory Warranty: 12 MonthsSpecificationsMaximum Operating Temperature: 1000°F (538°C)Manifold Material: 316 SST/316L SST, Alloy C-276, Alloy 400Packing Material: PTFE, graphite-basedProcess Connections: 1/4“-18 NPT female, 1/2“-14 NPT female, 1/2“-14 female NPT flange adapter, 12 mm ferrule tube flange adapterProcess Connection Orientation: Parallel with transmitter, 90° to transmitterCertifications: Cleaning for special services, sour gas (meets NACE MR 0175/ISO 15156, MR0103), see full specs for complete list of certificationsWarranty: Up to 5-year limited warrantyFeaturesDesigned for direct assembly to Rosemount Coplanar transmitter interface, eliminating the need for a flange50% tewer potential leak points than conventional transmitter to flange to manifold interfaceLightweight manifold design can be factory-assembled, leak-tested and calibrated for easy installation process2-, 3- and 5-valve configuration for multivariable, absolute, gage and differential pressure transmitters Ordering Information Model 0305 Integral manifold Manufacturer R Rosemount Manifold style C Coplanar Manifold type 5(1) Five valve Body(2) 2 316 SST/316L SSTBonnet: 316 SSTStem and tip/ball: 316 SST Process connection style 3(3) 1/2–14 NPT female Packing material 2(4) Graphite-based Valve seat 1 Integral NOTE:Not available with traditional manifold style T.Refer to page 25 for additional detail on process wetted materials of construction.Not available with traditional manifold style code M. Manifold style code T does not include mounting holes on process flange.Includes graphite tape on drain/vent valves and plugs.
