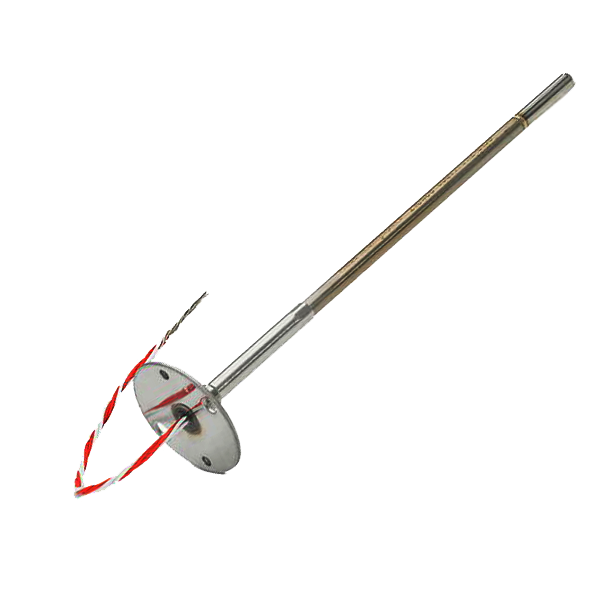

SpecificationsInsulation Resistance: 1,000 MO minimum insulation resistance when measured at 500 Vdc and at room temperatureCertifications/Approvals: Hazardous location, see full specs for complete list of certificationsLead Wires: PTFE insulated, 0.52 mm2 (20 AWG) stranded thermocouple wire, color coded per IEC 584Insulation Resistance: 1,000 MO minimum insulation resistance when measured at 500 Vdc and at room temperatureCertifications/Approvals: Hazardous location, see full specs for complete list of certificationsOrdering InformationModel0185 Thermocouple (IEC 584 Class 1) without thermowellLConnection head: TZ–A/BL (BUZH) aluminum w/cable glandIP rating(1): 65Conduit/cable entry: M20 x 1.5Sensor lead wire termination0Flying leads (no springs on DIN plate)05N1Sensor type: Thermocouple, Type N, dual element, isolated, ungroundedTemperature range: –40 to 1000 °C (–40 to 1832 °F)T Extension: DIN Standard 12 1.5Head-cnnection: M24 x 1.5Instrument connection: M18 x 1.5Material: 300 series stainless steelExtension length (N) in millimeters0200 Thermowell materialNNo thermowellSensor length (L) in millimeters0490To maintain IP rating, use a suitable cable gland on the conduit connection thread. All threads must be sealed with a suitable sealing tape.
