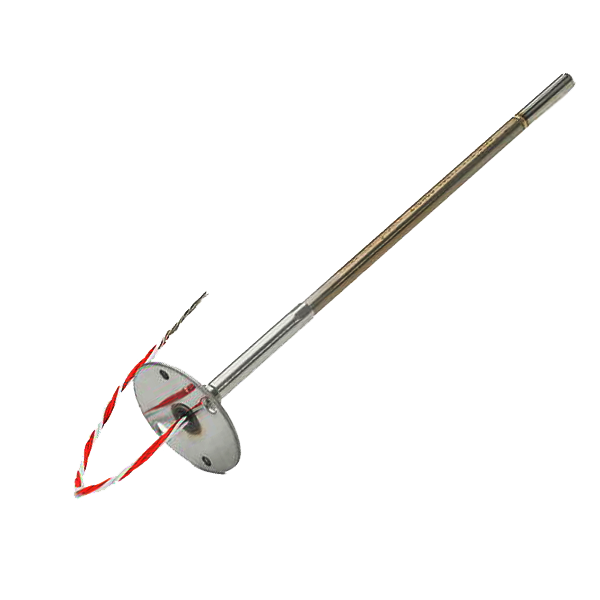

0185D205K1Z0200D0510G42Q8 | Rosemount 0185 Thermocouple

Part Number: 0185D205K1Z0200D0510G42Q8Model: 185 Thermocouple Temperature SensorManufacturer: RosemountSpecificationsInsulation Resistance: 1,000 MO minimum insulation resistance when measured at 500 Vdc and at room temperatureCertifications/Approvals: Hazardous location, see full specs for complete list of certificationsLead Wires: PTFE insulated, 0.52 mm2 (20 AWG) stranded thermocouple wire, color coded per IEC 584Insulation Resistance: 1,000 MO minimum insulation resistance when measured at 500 Vdc and at room temperatureCertifications/Approvals: Hazardous location, see full specs for complete list of certificationsFeaturesSensor designed per IEC 584 to offer optimal performanceSensor selections cover a wide range of temperatures from -40 to 1832°F (-40 to 1000°C) to meet process demandsAvailable in single element, dual element and isolated configurations with ungrounded junctions for adaptabilityDIN-style sensor connection heads allow for quick mounting and replacementTerminal block, flying leads and spring-loaded threaded adapters provide remote or integral mounting configurationAdaptable design with a variety of enclosure and connection head options meets varying application requirementsOption for thermowell assembly delivers increased protection from corrosive environmentsGlobal hazardous location approvals meet local requirements
