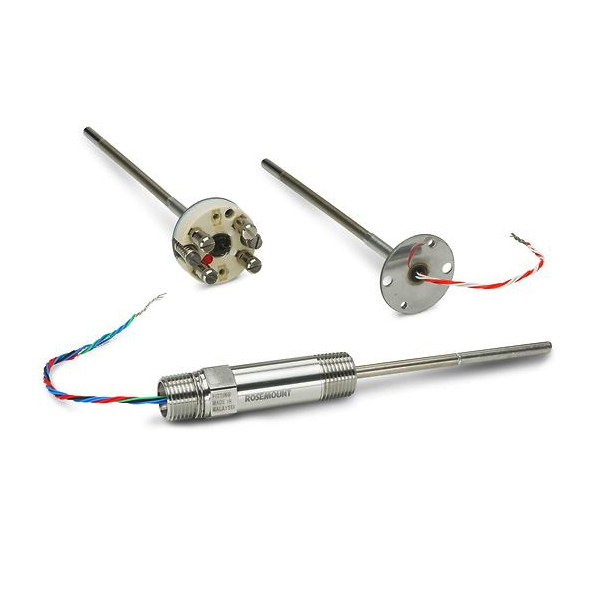

0065J02T0035N0200A1XA | Rosemount 65 RTD Temperature Sensor

Part Number: 0065J02T0035N0200A1XAModel: 65 RTD Temperature SensorManufacturer: RosemountSpecificationsTime Constant / Response: 9 seconds maximum required to reach 50% sensor response when tested in flowing water according to IEC 751:1983, Amendments 1 and 2Insulation Resistance: 1,000 MO minimum insulation resistance when measured at 500 Vdc and at room temperatureCalibration Options: IEC 751 Class A accuracy; Calibration schedule with Callendar-Van Dusen constants; MID custody transfer calibrationFeaturesIndustry-standard sensor per IEC 751 with single or dual element design offers reliable and flexible performanceResilient sensor withstands high vibration industrial applicationsDIN-style sensor connection heads allow for quick mounting and replacementSensor selections cover a wide range of temperatures from –321 to 1112°F (–196 to 600°C) to meet process demandsTerminal block, flying leads and spring-loaded threaded adapters enable remote or integral mounting configurationCallendar-Van Dusen constants allow for transmitter-sensor matching and provide the highest level of accuracyOptional Class A accuracy ensures critical temperature measurement points meet tolerance standards and accuracyOption for thermowell assembly increases protection from corrosive environmentsMeasurement Instrument Directive (MID) calibration options for custody transfer applicationsGlobal hazardous location approvals meet local requirements
